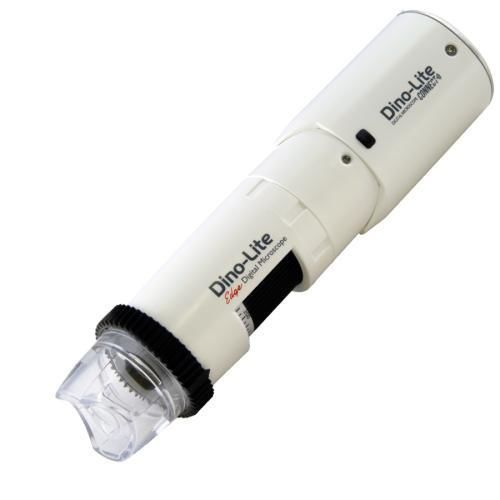

Digital capillaroscope MEDLW4N Pro

camera-basedcomputer-basedwith Wi-Fi connection

Description
The Dino‑Lite CapillaryScope 200 Pro Wireless (MEDLW4N Pro) is designed for examination of the microcirculation (nailfold capillaroscopy) of blood vessels beneath the fingernail. This compact digital capillaroscope captures and stores detailed nailfold images at up to 200x magnification while offering a wider field of view to visualize more capillaries in a single frame.

Key features

• Optics: advanced glass optics with anti‑reflection coating; magnifications 50x and 200x
• Illumination: 8 white LEDs, IR cut‑filter >650 nm; LEDs switchable on/off; integrated linear polarizer for glare reduction when using contact oil or water
• Imaging: CMOS sensor 1.3 MP (1280x1024), up to 30 fps; Automatic Magnification Reading (AMR); Microtouch sensor
• Connectivity & software: USB 2.0 and wireless (Wi‑Fi) options; DinoCapture 2.0 (Windows), DinoXcope (Mac), DinoConnect (wireless)
• Clinical use: Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745; compact, robust housing for routine clinical workflows

Technical specifications
Lighting
White LEDs (8), IR cut‑filter >650 nm, LED on/off switchable, polarizer linear

Optics
Magnification 50x and 200x; glass lens with anti‑reflection coating

Sensor
CMOS 1.3 MP (1280x1024); maximum frame rate 30 fps

Compatibility
Interface USB 2.0; supported OS Windows 7/8/10/11 and macOS 10.9+; imaging standards DirectShow, UVC; supported image/video formats per software

Housing
Composite/plastic housing; dimensions 10.5 cm (L) x 3.2 cm (D); weight 105 g; cable length 1.8 m; magnification lock included

Package & regulatory information

• Package contents: microscope, carry pouch, software CD, user manual, N3C‑N CapillaryScope cap
• Warranty: 2 years European warranty
• Regulatory approval: Medical Device Class 1 – MDR (EU) 2017/745
• Indicative price range: €900,00 - €1100,00

Characteristics / technical specifications

• Product code: MEDLW4N Pro
• Brand: Dino‑Lite
• Magnifications: 50x, 200x
• Sensor resolution: 1.3 MP (1280x1024), up to 30 fps
• LEDs: 8 white LEDs, IR cut‑filter >650 nm, switchable
• Polarizer: linear, switchable
• Connectivity: USB 2.0, Wi‑Fi (wireless)
• Software: DinoCapture 2.0 (Windows) cable + wireless; DinoXcope (Mac) cable only; DinoConnect (wireless)
• Housing: composite/plastic; dimensions 10.5×3.2 cm; weight 105 g; cable 1.8 m
• Special features: Automatic Magnification Reading (AMR), Microtouch sensor, magnification lock
