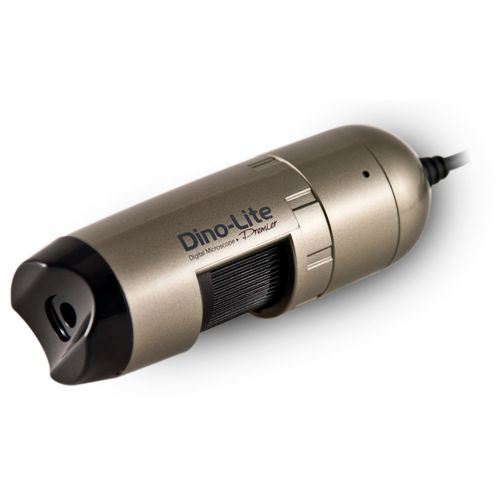

Digital capillaroscope MEDL4N5

computer-basedcamera-basedwith USB connection

Product overview
The CapillaryScope 500 (MEDL4N5) is a specialized nailfold capillaroscope designed to examine microcirculation beneath the nails. It enables easy capture and storage of highly detailed magnified images with a magnification of 500x. Product code: MEDL4N5.

Key features

• Magnification: 500x
• Sensor: CMOS 1.3 Megapixel (1280x1024), up to 30 fps
• Illumination: 8 white LEDs, LED on/off switchable
• Infrared filter: IR cut-filter >650 nm
• Lens: Glass with anti-reflection coating
• Interface: USB 2.0
• Microtouch sensor and magnification lock
• Housing: Composite/plastic
• Dimensions: 10.5 cm (L) x 3.2 cm (D); Weight: 95 g; Cable length: 1.8 m
• Package: Microscope, carry pouch, software CD, user manual
• Regulatory: Medical Device Class 1 (MDR EU 2017/745); Warranty: 2 years (Europe)

Specifications
Lighting:
Light / LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: No
Polarizer: No

Optics:
Magnification: 500x
Lens type: Glass with anti-reflection coating

Sensor:
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps

Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 & 11; MacOS 10.9 and up
Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC

Housing:
Housing material: Composite/plastic housing
Magnification lock: Yes
Dimensions: 10.5 cm (L) x 3.2 cm (D)
Weight: 95 g
Cable length: 1.8 m

Features:
Special feature: No
Measurement: No
Calibration: No
Microtouch sensor: Yes

Package contents

• Microscope
• Carry pouch
• Software CD
• User manual

Regulatory and warranty
Warranty information: 2 years European warranty
Regulatory approval: Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745

Technical specifications

• Model: CapillaryScope 500
• Product code: MEDL4N5
• Magnification: 500x
• Sensor: CMOS 1.3 MP (1280x1024)
• Maximum frame rate: 30 fps
• Interface: USB 2.0
• Operating systems: Windows 7/8/10/11; MacOS 10.9+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• LEDs: 8 white, on/off
• IR filter: IR cut-filter >650 nm
• Lens: Glass with anti-reflection coating
• Housing: Composite/plastic
• Magnification lock: Yes
• Microtouch sensor: Yes
• Dimensions: 10.5 cm x 3.2 cm
• Weight: 95 g
• Cable length: 1.8 m
• Package contents: Microscope, carry pouch, software CD, user manual
• Warranty: 2 years (Europe)
• Regulatory approval: Medical Device Class 1 (MDR EU 2017/745)
• Price range indicated: €400,00 - €600,00
