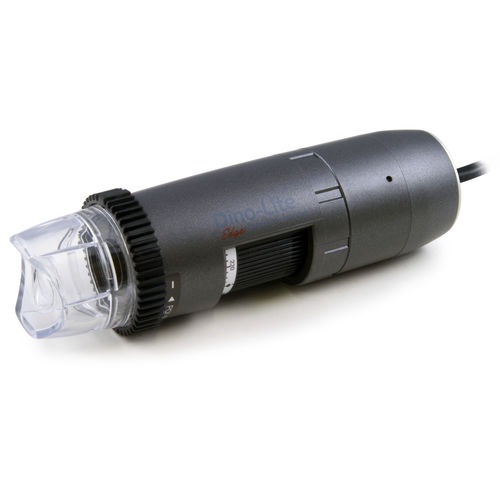

Digital capillaroscope MEDL4N Pro

computer-basedcamera-basedwith USB connection

Overview
The CapillaryScope 200 Pro (MEDL4N Pro) by Dino-Lite is a compact digital nail‑fold capillaroscope for assessment and documentation of microcirculation under the fingernail. It captures high‑quality colour images at up to 200x magnification with a larger field of view for evaluation of multiple capillaries per frame. The device features a switchable linear polarizer for glare‑free imaging when using contact oil or water. Certified as a medical device under MDR (EU) 2017/745 (Class I). All required software is included.

Key features

• Magnifications: 50x and 200x — larger FOV compared with higher‑magnification models for faster capillary mapping
• Optics: glass lens with anti‑reflection coating for accurate colour rendering
• Illumination: 8 white LEDs, LED on/off switchable; IR cut‑filter >650 nm; integrated switchable linear polarizer
• Sensor: CMOS, 1.3 MP (1280x1024), up to 30 fps
• Interface & software: USB 2.0; DinoCapture 2.0 (Windows), DinoXcope (MacOS); DirectShow/UVC compatible
• Ergonomics: compact composite/plastic housing, magnification lock, Microtouch sensor for user control

Package contents

• CapillaryScope microscope
• Carry pouch
• Software CD
• User manual
• N3C‑N CapillaryScope cap

Technical specifications

• Lighting — Light/LED type: White
• Lighting — Number of LEDs: 8
• Lighting — LED on/off switchable: Yes
• Lighting — Infrared filter: IR cut‑filter >650 nm
• Lighting — Diffuser available: No
• Lighting — Polarizer: Yes, linear (switchable)
• Optics — Magnification: 50x, 200x
• Optics — Lens type: Glass with anti‑reflection coating
• Sensor — Sensor type: CMOS
• Sensor — Resolution: 1.3 Megapixel (1280x1024)
• Sensor — Maximum frame rate: 30 fps
• Compatibility — Interface: USB 2.0
• Compatibility — Operating system: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Compatibility — Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
• Compatibility — Imaging standards: DirectShow, UVC
• Housing — Material: Composite / plastic housing
• Housing — Magnification lock: Yes
• Housing — Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Housing — Weight: 105 g
• Housing — Cable length: 1.8 m
• Features — Special feature: Automatic Magnification Reading (AMR)
• Features — Measurement: No
• Features — Calibration: No
• Features — Microtouch sensor: Yes

Regulatory & warranty

• Regulatory approval: Medical Device Class I — MDR (EU) 2017/745
• Warranty: 2 years European warranty
• Price range (indicative): €600.00 - €800.00
