Digital capillaroscope MEDL4N5 Procomputer-basedcamera-basedwith USB connection
Add to favorites
Compare this product
Characteristics
- Type
- digital
- Ergonomics
- computer-based, camera-based
- Connectivity
- with USB connection
Description
Product description

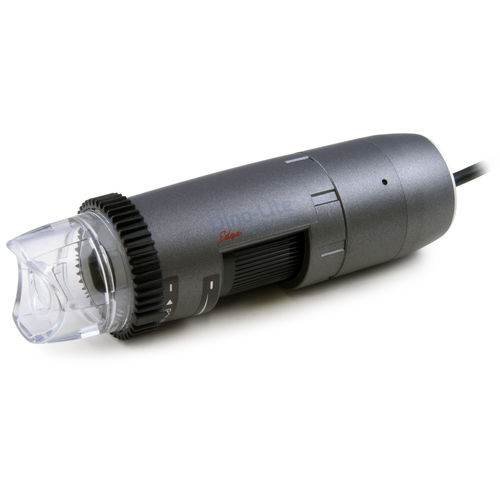

The Dino-Lite CapillaryScope 500 Pro (MEDL4N5 Pro) is a digital nail-fold capillaroscope designed to examine the microcirculation of blood vessels beneath the fingernail. It captures and stores high-detail nail-fold capillaroscopy images at 500x magnification and is certified under the Medical Devices Regulation (EU) 2017/745. All required software is included for clinical and research use.
Main features
Lighting
Optics
Sensor
Compatibility
Housing & dimensions
Functions
Information & package contents
The Dino-Lite CapillaryScope 500 Pro (MEDL4N5 Pro) is a digital nail-fold capillaroscope designed to examine the microcirculation of blood vessels beneath the fingernail. It captures and stores high-detail nail-fold capillaroscopy images at 500x magnification and is certified under the Medical Devices Regulation (EU) 2017/745. All required software is included for clinical and research use.
Main features
- Magnification: 500x
- Sensor: CMOS, 1.3 Megapixel (1280x1024), up to 30 fps
- Lighting: 8 white LEDs, switchable
- Polarizer: Switchable linear polarizer for glare-free contact imaging
- Automatic Magnification Reading (AMR) and magnification lock
- Interface: USB 2.0; Microtouch sensor for capture control
- Regulatory: Medical Device Class 1 (MDR 2017/745); 2-year European warranty
Lighting
- Light/LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut-filter >650 nm
- Diffuser available: No
- Polarizer: Yes, linear (switchable)
Optics
- Magnification: 500x
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 Megapixel (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11; MacOS 10.9 and up
- Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
Housing & dimensions
- Housing material: Composite/plastic housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 105 g
- Cable length: 1.8 m
Functions
- Special feature: Automatic Magnification Reading (AMR)
- Measurement: No
- Calibration: No
- Microtouch sensor: Yes
Information & package contents
- Package contents: Microscope, carry pouch, software CD, user manual, N3C-N CapillaryScope cap
- Warranty information: 2 years European warranty
- Regulatory approval: Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745
- Price range: €600,00 - €800,00
