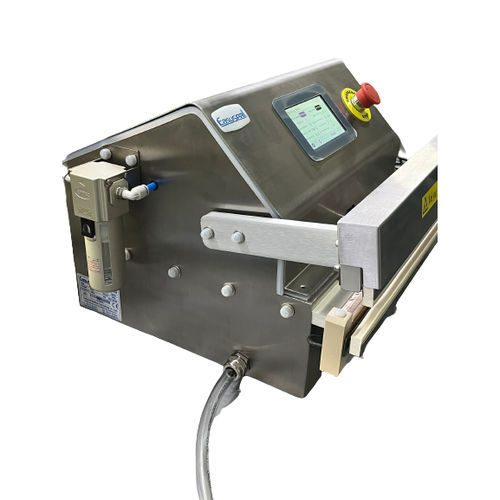

Medical heat sealer EF813-650A

automatic

Features: 5' touch screen display, single-chip microcomputer control, pulse heating, negative pressure detection, pedal control, pulsating vacuum, single suction nozzle design, upper and lower press-fit sealing, automatic microcomputer temperature control, accurate temperature control, high heat sealing strength, stable heat sealing quality, simultaneous sealing quantity statistics, sealing temperature and suction pressure display, built-in vacuum system. Simple operation, safe and reliable work, vertical output, small footprint. Parameters such as sealing temperature, sealing time, cooling time, pumping parameters, and equipment operating status can be set as required. IV.echnical Parameters Control system: 5’ touch screen display, single-chip microcomputer control Seal width: 3 /5/8mm Heat sealing length: ≤650 mm Sealing margin: ≤75 mm Working temperature: adjustable from 100 to 200 ℃ Working air pressure: 0.5±0.05Mpa Filtration accuracy: <5μm for food, medicine, electronics, etc. Counting range: 1～99999999 Sealing time range: 0～60.0 s Cooling time range: 1～120 s Pumping frequency range: 0 to 10 times Pumping time range: 0～600.0 s Vacuum pressure range: -100～0 kpa Compressed air pipe diameter: φ8 mm Compressed air pressure: 0.5～0.8 Mpa Negative pressure pipe diameter: φ8 mm Exhaust pipe diameter: φ8 mm Pressing method: pneumatic Into the bag direction: front Operating noise: ≤75 dB AC power supply: 220V±10% 50Hz Power: 500W Maximum current: 23 A Fuse: 25 A Host weight: 40 Kg Dimensions: 710×450×345 (length×width×height) mm storage environment Temperature: 10～40oC Humidity: ≤90% (R.H) Atmospheric pressure: 50KPa～106KPa
