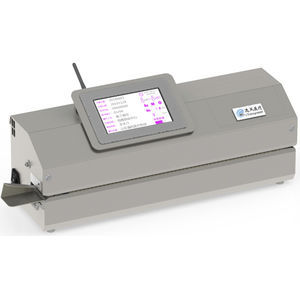

Medical thermosealer EF170-ECW

for productionmedical industryautomatic

Product
EF170-ECW head bag sealing and cutting machine for sterilization workflows. Performs initial sealing of the pouch header before sterilization and a second sealing plus cutting of the remaining edge after sterilization. Adjustable sealing parameters allow adaptation to various pouch materials.

Technical specifications

• Maximum cutting width of the remaining edge: 200 mm
• Sealing speed: 10 ± 0.5 m/min
• Sealing edge: adjustable from 0 to 200 mm
• Sealing width: 12 mm
• Working temperature: adjustable from 60 to 220 °C
• Temperature control accuracy: ≤ ± 1%
• Counting range: 1-9999
• Bag entry method: Left side bag entry
• AC power supply: 220V ± 10% 50Hz
• Power: 500 W
• Maximum current: 3.2 A
• Fuses: 5A x 2

Applications and compatibility

• For sterilization departments in hospitals and clinics
• Medical device manufacturers and packaging lines
• Contract sterilization service providers
• Compatible with standard heat-sealable sterilization pouches and polymer bags

Operational notes

• Adjustable temperature and sealing edge for process optimization across pouch materials
• Counting function supports batch control (1–9999)
• Left-side bag entry suitable for integration into linear sterilization workflows
• Electrical installation must comply with local regulations (220V ± 10% 50Hz)
