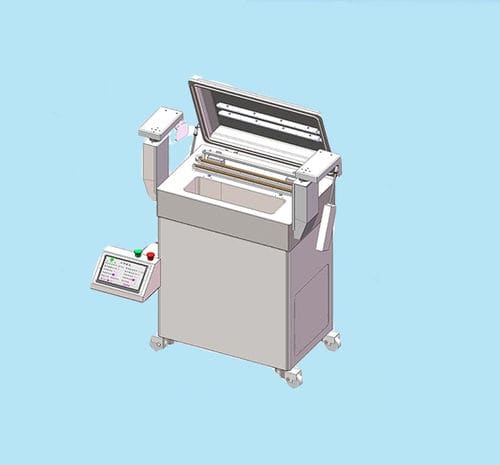

Thermosealer for the pharmaceutical industry EF870

for productionautomaticfor medical packaging

Product description
The EF870 aseptic heat sealing machine is designed for in-line vacuuming and heat-sealing of heat-sealable materials such as plastic bags and aluminum foil pouches used in pharmaceutical production. It forms regular square brick-shaped sealed packs and delivers sealing quality that meets GMP and relevant international standards. Compared with traditional aluminum cylinders, brick-shaped sealed packs reduce transport volume and minimize packaging waste.

Design and features

• Manufactured entirely in 316L stainless steel with mirror-polished surfaces for effective cleanability
• Built-in sterile filter and imported diaphragm valve for sanitary operation
• Imported high-vacuum negative pressure pump; designed to be compatible with VHP disinfection and cleaning cycles
• Dedicated material-carrying mold produces uniform square brick-shaped packs
• Customizable sealing width options and adjustable process parameters for on-site packaging needs

Technical specifications

• Heat sealing width: 3/5/8 mm double indentation, interval 50 mm (customizable)
• Heat sealing length: 500 mm
• Working temperature: 100–200 °C (adjustable)
• Temperature control accuracy: ≤ 1%
• Compressed air pressure: 0.5–0.8 MPa
• Negative pressure source: built-in high-vacuum pump
• Operating noise: ≤ 75 dB
• AC power supply: 220 V ±10% 50 Hz
• Power consumption: 1000 W
• Maximum current: 16 A
• Fuses: 10 A × 2
• Material: 316L stainless steel, mirror polished

Applications

• Vacuuming and heat-sealing of APIs and other heat-sealable pharmaceutical packaging materials
• On-site formation of compact square brick packs to reduce transport volume and packaging costs
• Processes requiring VHP-compatible disinfection and GMP-compliant cleanability
