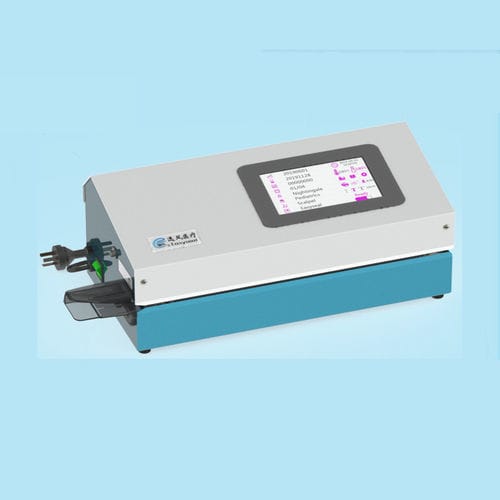

Medical thermosealer KY902
dentalautomaticfor medical packaging

Add to favorites

Compare this product

Characteristics

Applications

medical, dental

Operation

automatic

Container type

for medical packaging

Configuration

benchtop

Options

with printer, with touchscreen, continuous, with temperature control

Seal width

12 mm
(0 in)

Sealing speed

Max.: 10,500 mm/min
(7 in/s)

Min.: 9,500 mm/min
(6 in/s)

Power

500 W

Sealing temperature

Max.: 220 °C
(428 °F)

Min.: 60 °C
(140 °F)

Weight

12.5 kg
(27.6 lb)

Length

52 cm
(20 in)

Width

23 cm
(9 in)

Height

21 cm
(8 in)

Main features

1.7" color LCD touch screen with graphical interface, built-in clock and configurable operating parameters for department and operator identification.
Settings (device parameters, operator, department, item name, notes) editable in English and Chinese on the touch screen; settings can be printed by the machine.
Microcontroller temperature control; working temperature adjustable from 60 to 220 °C with accuracy ≤ 1%.
Fast heating: 40 s from 20 °C to 180 °C; 10 s to change from common working temperatures (e.g., 120 °C to 180 °C) — reduces warm-up time and saves energy.
Microcomputer-controlled auxiliary cooling to shorten wait time between high and low sealing temperatures (e.g., ~40 s from 180 °C to 120 °C).
Automatic sealing detection and printing using optical control; sealing speed 10 ± 0.5 m/min.
Sealing width 12 mm; sealing quality compliant with WS310.2-2016 and YY/T 0698.5-2009 for heat sealing machines.
Adjustable sealing edge from 0 to 35 mm to suit different pouch types.
Supports input and printing of Chinese/English characters, numbers and symbols per YY0466-2003 (medical device labeling) for sterilization date, expiry date, batch, operator, item and department.

Technical specifications
