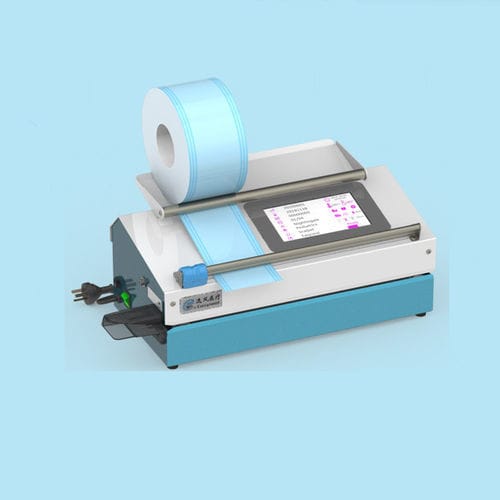

Medical thermosealer KY901-C
for central sterilization unitsdentalmanual

Add to favorites

Compare this product

Characteristics

Applications

medical, for central sterilization units, dental

Operation

manual

Container type

for medical packaging

Configuration

benchtop

Options

with printer, with touchscreen, with cutting, with temperature control

Seal width

12 mm
(0 in)

Sealing speed

Min.: 9,500 mm/min
(6 in/s)

Max.: 10,500 mm/min
(7 in/s)

Power

500 W

Sealing temperature

Min.: 60 °C
(140 °F)

Max.: 220 °C
(428 °F)

Main features

1.7-inch color LCD touch screen with graphical operation interface and built-in clock; configurable working parameters.
Device usage parameters, operator names, department names, item names and notes can be set or edited in Chinese and English via the touch screen; the sealing machine can print the corresponding settings.
Microcomputer temperature control with adjustable working temperature from 60 to 220 °C; temperature control accuracy ≤ ±1%.
High-speed heating: 40 seconds to rise from 20 °C to 180 °C; 10 seconds to change common working temperature from 120 °C to 180 °C — efficient and energy-saving.
Auxiliary cooling (microcomputer-controlled) reduces waiting time when lowering from high to low sealing temperatures (e.g., ~40 seconds from 180 °C to 120 °C) to improve throughput.
Sealing speed: 10 ± 0.5 m/min; automatic detection of sealing and printing using optical control technology.
Seal width: 12 mm; sealing performance complies with WS310.2-2016 and YY/T 0698.5-2009 standards for heat-sealing machines.
Adjustable sealing edge from 0 to 35 mm to meet user requirements.
Supports input and printing of Chinese and English characters, numbers and symbols compliant with YY0466-2003 (Medical Devices — Labelling); can print sterilization date, expiration date, sterilization batch, pot number, operator, item name and department name.
