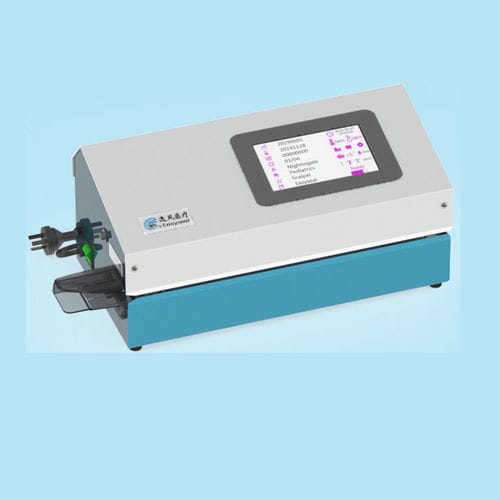

Dental thermosealer KY901
automaticfor medical packagingbenchtop

Add to favorites

Compare this product

Characteristics

Applications

dental

Operation

automatic

Container type

for medical packaging

Configuration

benchtop

Options

with printer, with touchscreen, high-speed, with temperature control

Seal width

12 mm
(0 in)

Sealing speed

Max.: 10,500 mm/min
(7 in/s)

Min.: 9,500 mm/min
(6 in/s)

Power

500 W

Sealing temperature

Max.: 220 °C
(428 °F)

Min.: 60 °C
(140 °F)

Weight

11.5 kg
(25.4 lb)

Length

47 cm
(19 in)

Width

23 cm
(9 in)

Height

21 cm
(8 in)

Main features

7" color LCD touch screen with graphical interface and built-in clock; operating parameters can be configured directly via the screen.
Bilingual input (Chinese/English) for printing parameters: operator, department, item name and notes can be set and printed from the device.
Intelligent computer temperature control; working temperature adjustable from 60 to 220 °C with control accuracy ≤ ±1%.
High-speed heating: 20 °C to 180 °C in 40 seconds; 120 °C to 180 °C in 10 seconds — designed for fast-paced production.
Auxiliary microcomputer-controlled cooling shortens recovery time from high to low sealing temperatures (180 °C to 120 °C in ~40 seconds).
Sealing speed up to 10 m/min with optical control for automatic sealing detection and synchronized printing.
Seal width 12 mm; sealing performance complies with WS310.2-2016 and YY/T 0698.5-2009 standards.
Adjustable sealing edge from 0 to 35 mm to accommodate different pouch sizes and formats.
Supports printing of Chinese/English characters, numbers and symbols per YY0466-2003 for sterilization/expiry/batch/operator/item/department identification.

Additional parameters

Technical specifications

Model: KY901
Sealing speed: 10 ± 0.5 m/min
Seal width: 12 mm
Sealing edge adjustment: 0–35 mm
Working temperature range: 60–220 °C
Temperature control accuracy: ≤ ±1%
Sealing pressure: 85 ± 15 N
Heating performance: 20 °C → 180 °C in 40 s; 120 °C → 180 °C in 10 s
Auxiliary cooling: 180 °C → 120 °C in ≈40 s
Display & control: 7" color LCD touch screen with bilingual (Chinese/English) input for printing parameters
Printing: Needle printer (one unit) supporting sterilization date, expiration date, batch, operator, item and department names per YY0466-2003
Power supply: AC 220V ±10% 50Hz
Power consumption: 500 W
Maximum current: 3.2 A
Fuses: 6A × 2
Dimensions (W×D×H): 472 × 232 × 205 mm
Weight: 11.5 kg
