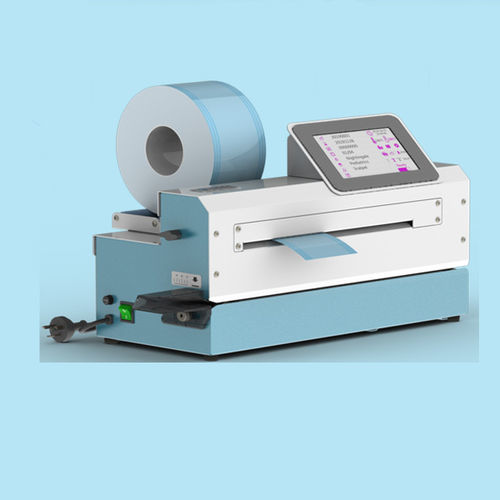

Medical thermosealer KY902-AC
for central sterilization unitsdentalautomatic

Add to favorites

Compare this product

Characteristics

Applications

medical, for central sterilization units, dental

Operation

automatic

Container type

for medical packaging

Configuration

benchtop

Options

with printer, with touchscreen, with cutting, with temperature control

Seal width

12 mm
(0 in)

Sealing speed

Max.: 10,500 mm/min
(7 in/s)

Min.: 9,500 mm/min
(6 in/s)

Power

500 W

Sealing temperature

Max.: 220 °C
(428 °F)

Min.: 60 °C
(140 °F)

Main features

1.7" color LCD touch screen with graphical operation interface and built-in clock; configurable working parameters and bilingual (Chinese/English) settings.
Built-in color touch control allows setting or changing device parameters, operator name for printing, department name, item name and notes in Chinese and English; corresponding settings can be printed by the sealing unit.
Microprocessor temperature control design; working temperature adjustable between 60 °C and 220 °C; temperature control accuracy ≤ ±1%.
High-speed heating: 40 seconds to rise from 20 °C to 180 °C; 10 seconds to change common working temperature from 120 °C to 180 °C; efficient and energy-saving.
Auxiliary cooling with microcomputer-controlled mechanism reduces cooldown time from high-temperature sealing to low-temperature sealing (e.g., 180 °C to 120 °C in ~40 seconds), improving throughput.
Sealing speed: 10 ± 0.5 m/min; automatic detection of sealing and printing using optical control technology.
Seal width: 12 mm; sealing performance meets standards WS310.2-2016 and YY/T 0698.5-2009 for heat sealing machines.
Sealing edge adjustable from 0 to 35 mm to meet packaging requirements.
Supports input and printing of Chinese and English characters, numbers and symbols compliant with YY0466-2003 (Medical Devices — Labeling); supports printing of sterilization date, expiry date, sterilization batch, pot number, operator, item name and department name.

Other product information

Technical specifications

Model: KY902-AC
Sealing speed: 10 ± 0.5 m/min
Seal width: 12 mm
Cutting width: 300 mm
Sealing edge adjustment: 0–35 mm
Working temperature: 60–220 °C (adjustable)
Temperature control accuracy: ≤ ±1%
Sealing pressure: 85 ± 15 N
AC power: 220 V ± 10% 50 Hz
Maximum current: 3.2 A
Fuses: 6 A × 2
Power consumption: 500 W
Interface: 1.7" color LCD touch screen, bilingual (Chinese/English) settings and printing
Printing: Two needle printers; supports required medical labeling fields
Standards compliance: WS310.2-2016; YY/T 0698.5-2009; YY0466-2003 (labeling)
