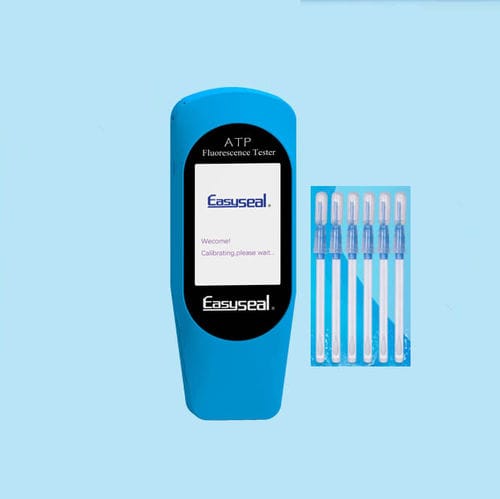

Luminescence detector EF10.ATP-S

for medical applicationshand-heldATP

Product introduction
The instrument uses firefly luminescence based on the luciferase-luciferin system to rapidly quantify adenosine triphosphate (ATP) in samples. Because all living cells contain ATP, ATP measurement indicates residual microorganisms and organic contamination and is used to evaluate sanitation conditions. The device is easy to operate, offers fast detection, high sensitivity and is lightweight, suitable for use in medical, food, pharmaceutical, daily chemicals, papermaking, industrial water treatment, defense, environmental protection and customs quarantine applications.

Applications

• Food hygiene and production line control
• Medical and healthcare surface monitoring
• Pharmaceutical production and cleanroom checks
• Daily chemical industry hygiene control
• Pulp and paper process monitoring
• Industrial water and wastewater testing
• Environmental and quarantine inspections

Technical parameters

• Testing accuracy: 2.5×10^-18 mol
• Detection range: 0–65535 RLUs
• Detection limit: 1 RLU
• Detection time: 10 seconds
• Detection interference: ±5%
• Measurement mode: RLU
• Display: 3.5-inch LCD
• Power supply: 3.7V rechargeable lithium battery
• Battery capacity: 3400 mAH
• Operating temperature: 5–40°C
• Operating humidity: 20–85% RH
• Swab warranty: 12 months
• Dimensions: 200×70×38 mm (L×W×H)
• Weight: <255 g
• Customization: device can be customized according to customer requirements

Model information

• KH10.ATP-S — single swab — detection accuracy 2.5×10^-18 mol — portable printer: No
• KH10.ATP-D — double swab — detection accuracy 2.5×10^-18 mol — portable printer: No
• KH10.ATP-S-P — single swab — detection accuracy 2.5×10^-18 mol — portable printer: Yes
• KH10.ATP-D-P — double swab — detection accuracy 2.5×10^-18 mol — portable printer: Yes

Consumables — special swabs

• KH.SSAS — solid surface swabs — 20 pcs — Applications: medical device and equipment surfaces, work surfaces, tableware and food-contact surfaces
• KH.AWQS — water quality testing swabs — 20 pcs — Applications: water source and post-sterilization water used for medical, food and drinking water testing

Features / specifications

• Principle: firefly luminescence using luciferase-luciferin system to detect ATP
• Fast measurement with 10 s detection time
• High sensitivity across 0–65535 RLUs with 1 RLU detection limit
• Compact handheld design with 3.5-inch LCD for onsite testing
• Rechargeable 3.7V / 3400 mAH battery for portable operation
• Suitable for multiple industry hygiene and contamination control applications
