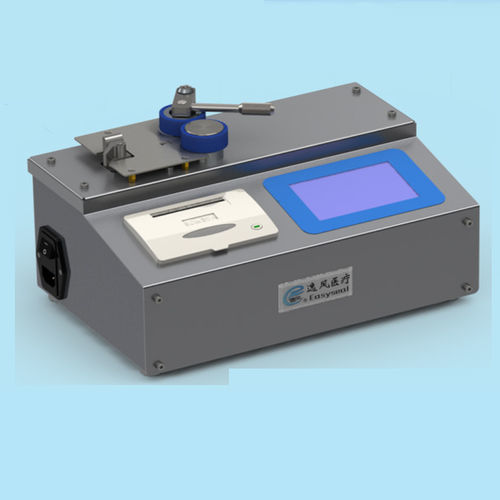

Integrity tester EF601

loadheat sealtensile

Equipment use:
This instrument measures the seal strength of sealed pouches and combinations of plastic film in accordance with YY/T 0698.5-2009 (Section 5). It determines the combined seal and coil joint strength and evaluates seal integrity before and after sterilization to verify compliance with required strength criteria and regulatory test parameters. Test records can be printed by the integrated micro-printer or exported to a PC via an optional USB interface and dedicated software for batch traceability.

Main features:

• Microcomputer control with color display and touch keys; intuitive operator interface.
• Maximum and average test result functions.
• Automatic calculation and output of selected test parameters and results.
• Operator prompts and safety protections to ensure secure test execution.
• Integrated micro-printer for immediate printout; optional USB PC interface for data export and record storage.
• Designed for straightforward operation with stable and repeatable performance.

Technical specifications:

• Load range: 0–20 N
• Accuracy: 0.1 N
• Crosshead speed: 200 mm/min
• Sample width: 15 mm
• Power consumption: 50 W
• Power supply: AC 110 V / 220 V 50 Hz
• Dimensions (L × W × H): 320 × 200 × 215 mm
• Net weight: 8 kg
• Operating conditions: temperature 10–35 °C; humidity 20–80%
