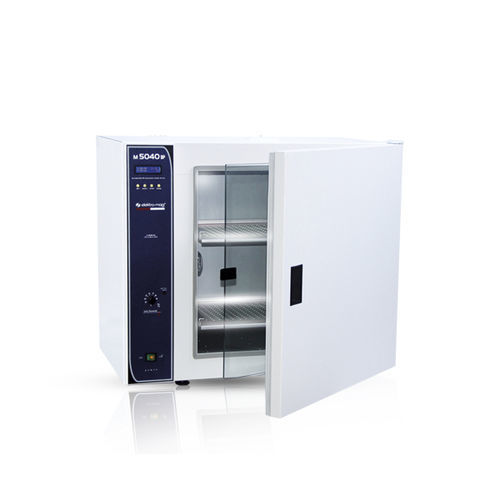

Natural convection laboratory incubator M 5040 BP S

for microbiologybacteriologicalbenchtop

Product overview
Bacteriological incubators are laboratory units designed to create controlled temperature conditions for microbiological work. The M 5040 BP S from Elektro-mag is a bacteriological incubator with a stainless steel working chamber. It offers precise temperature setting and control, ensuring homogeneous temperature distribution for reliable, reproducible results.

Category information
Bacteriological incubators provide stable conditions for growing and studying microorganisms and culturing samples. The typical operating temperature range is from ambient +5 °C up to 100 °C, depending on the application.

Advantages / Key points

• Stainless steel internal chamber for corrosion resistance and easy cleaning
• Moderately larger chamber (100 L) allows processing more samples in a single run
• Ergonomic, durable design with a user-friendly menu
• Precise PID digital temperature control and homogeneous temperature distribution for reliable results

Technical specifications

• Operating Temperature Range: Ambient temperature +5°C to 100°C
• Capacity (Internal Volume): 100 L
• Thermoelement Type: Linear temperature sensor
• Temperature Control: PID digital control
• Load Switching Element: SSR
• Thermostat Adjustment Sensitivity: 0.1°C
• Thermostat Operating Accuracy: ± 0.1°C
• Thermometer Reading Sensitivity: 0.1°C
• Internal Temperature Variations: ± 1°C
• Circulation: Natural air circulation ensuring homogeneous heat distribution
• Circulation Fan: Not available
• Postpone / Operation Time: 1 min – 99 hours 59 min
• Timing Start: When set temperature is reached
• Safety System: Liquid expansion safety thermostat (30-110°C)
• External Cabinet Material: Electrostatic powder coated / painted steel
• Internal Chamber Material: Stainless steel
• Insulation Material: Rock wool
• Shelf: Perforated stainless steel (2 pieces)
• Fuse: 6 Amps
• Total Power: 1000 W
• Power Supply: AC 190-240 V / 50-60 Hz
• Internal Dimensions (W x D x H): 50 x 40 x 50 cm
• External Dimensions (W x D x H): 79 x 53 x 69 cm
• Net Weight: 55 kg
• Packaged Weight: 61 kg
