Forced convection laboratory incubator M 6040 BP SS

forced airbacteriologicalbenchtop

Product overview

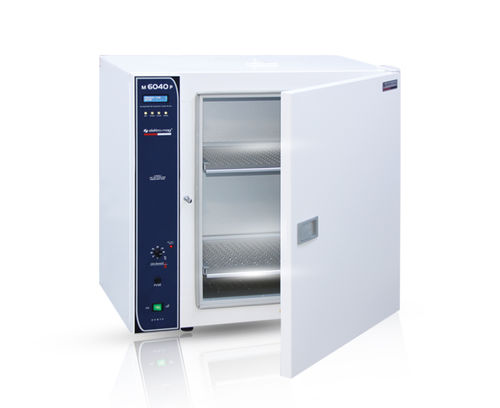

Elektro-mag M 6040 BP SS is a bacteriological laboratory incubator featuring a stainless steel internal chamber and fan-forced air circulation. The 120 L volume supports small to medium sample sets with faster heating and uniform temperature distribution. PID digital control and SSR load switching ensure stable and accurate temperature regulation for bacteriological workflows.

Category information
Bacteriological incubators are used in laboratories to cultivate and develop microorganism cultures by maintaining controlled temperatures and homogeneous internal conditions. Typical operating range covers a few degrees above ambient up to 100 °C, suitable for a variety of microbiological protocols.

Advantages

• Stainless steel inner chamber for easy cleaning and corrosion resistance
• PID digital temperature control with 0.1 °C sensitivity and ±0.1 °C operating accuracy
• Fan-driven circulation for homogeneous heat distribution
• Fast heating due to compact 120 L chamber, reducing wait times and energy use
• SSR load switching and liquid expansion safety thermostat for reliable operation
• Ergonomic design with user-friendly menu and two perforated stainless steel shelves

Technical Specifications (table)
Operating temperature range: Ambient +5 °C to 100 °C
Capacity (internal volume): 120 L
Temperature control: PID digital control, linear temperature sensor
Load switching element: SSR
Thermostat sensitivity / accuracy: 0.1 °C / ±0.1 °C
Internal temperature variations: ±1 °C
Circulation: Fan-driven air circulation (fan available)
Timer: 1 min – 99 h 59 min (start when set temperature is reached)
Safety: Liquid expansion safety thermostat (30–110 °C)
Materials: External cabinet electrostatic powder-coated steel; internal chamber stainless steel; insulation rock wool
Shelves: Perforated stainless steel (2 pcs)
Power: 1000 W, fuse 6 A, AC 190–240 V / 50–60 Hz
Internal dimensions (W x D x H): 50 x 40 x 60 cm
External dimensions (W x D x H): 79 x 53 x 79 cm
Net weight / Packaged weight: 55 kg / 62 kg

What is a bacteriological incubator?
A bacteriological incubator provides stable, uniform temperature conditions required for cultivating microorganism cultures, enabling reproducible growth conditions for microbiology, quality control and R&D applications.

Characteristics / technical specifications

• Operating Temperature Range: Ambient temperature +5 °C to 100 °C
• Capacity (Internal Volume): 120 L
• Thermoelement Type: Linear Temperature Sensor
• Temperature Control: PID Digital Control
• Load Switching Element: SSR
• Thermostat Adjustment Sensitivity: 0.1 °C
• Thermostat Operating Accuracy: ±0.1 °C
• Thermometer Reading Sensitivity: 0.1 °C
• Internal Temperature Variations: ±1 °C
• Circulation: Fan driven air circulation for homogeneous heat distribution
• Circulation Fan: Available
• Postpone / Operation Time: 1 min – 99 hours 59 min
• Timing Start: When set temperature is reached
• Safety System: Liquid expansion safety thermostat (30–110 °C)
• External Cabinet Material: Electrostatic powder coated / paint steel
• Internal Chamber Material: Stainless Steel
• Insulation Material: Rock Wool
• Shelf: Perforated stainless steel (2 pieces)
• Fuse: 6 Amps
• Total Power: 1000 W
• Power Supply: AC 190–240 V / 50–60 Hz
• Internal Dimensions (W x D x H): 50 x 40 x 60 cm
• External Dimensions (W x D x H): 79 x 53 x 79 cm
• Net Weight: 55 kg
• Packaged Weight: 62 kg
