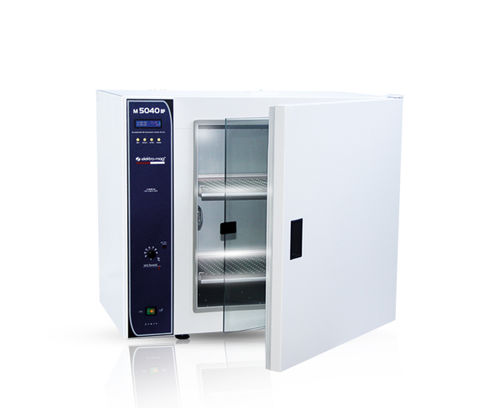

Forced convection laboratory incubator M 5040 BP SS

forced airbacteriologicalbenchtop

Product description
Elektro-mag M 5040 BP SS is a bacteriological laboratory incubator with a 100 L stainless steel working chamber and an air-driving fan that ensures homogeneous temperature distribution. The unit provides precise temperature adjustment and control for reliable and repeatable results. The smaller chamber volume enables faster heating and energy savings when working with few samples. The product features an ergonomic design and an easy-to-use menu.

Category information
Bacteriological incubators are used in laboratories to culture and develop microorganisms. Typical operating temperature range is from ambient +5 °C up to 100 °C.

Advantages

• Stainless steel internal chamber for durability and easy cleaning
• Fan-driven air circulation for more homogeneous temperature distribution
• Precise PID digital temperature control and linear temperature sensor for accurate regulation
• Smaller 100 L chamber for faster heating and improved energy efficiency with few samples
• Ergonomic, long-lasting design with a user-friendly menu

Caractéristiques / Spécifications techniques

• Operating temperature range: Ambient temperature +5 °C / 100 °C
• Capacity (internal volume): 100 L
• Thermoelement type: Linear temperature sensor
• Temperature control: PID digital control
• Load switching element: SSR
• Thermostat adjustment sensitivity: 0.1 °C
• Thermostat operating accuracy: ±0.1 °C
• Thermometer reading sensitivity: 0.1 °C
• Internal temperature variations: ±1 °C
• Circulation: Fan-driven air circulation ensuring uniform heat distribution
• Circulation fan: Available
• Delay / operation time: 1 min – 99 h 59 min
• Timing start: When the set temperature is reached
• Safety system: Liquid expansion safety thermostat (30–110 °C)
• External cabinet material: Electrostatic powder-coated / painted steel
• Internal chamber material: Stainless steel
• Insulation material: Rock wool
• Shelves: Perforated stainless steel (2 pieces)
• Fuse: 6 A
• Installed power: 1000 W
• Power supply: AC 190–240 V / 50–60 Hz
• Internal dimensions (W × D × H): 50 × 40 × 50 cm
• External dimensions (W × D × H): 79 × 53 × 69 cm
• Net weight: 53 kg
• Packaged weight: 59 kg
