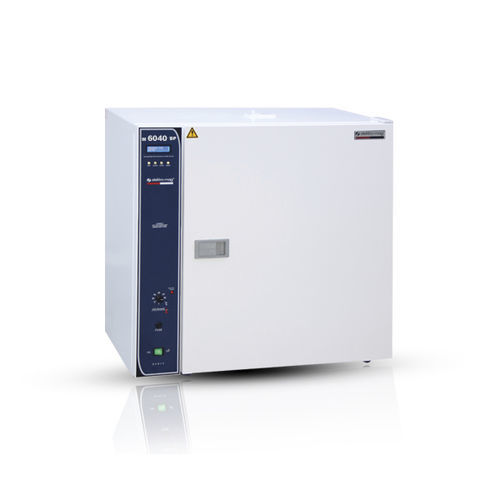

Natural convection laboratory incubator M 6040 BP S

for bacteriologybacteriologicalbenchtop

Overview
Bacteriological incubators are laboratory devices designed to provide precisely controlled temperature conditions for bacteriological studies and microorganism culture development. The Elektro-mag M 6040 BP S features a stainless steel working chamber with a 120 L volume, PID digital temperature control and natural air circulation to ensure homogeneous temperature distribution. The unit is designed for laboratory workflows with an intuitive menu and durable construction.

Category information
Bacteriological incubators (laboratory incubators) are used in microbiology, clinical and research laboratories for cultivating and incubating microorganisms under defined temperature conditions. The Elektro-mag M 6040 BP S belongs to the bacteriological incubator range with a stainless steel internal chamber.

What is a bacteriological incubator?
These devices create optimal thermal conditions for bacteriological studies such as growth and maintenance of bacterial cultures, with an operating range typically from ambient +5 °C up to 100 °C.

Advantages of the Elektro-mag M 6040 BP S

• Stainless steel internal chamber for easy cleaning and corrosion resistance.
• 120 L internal volume allows processing of multiple samples per cycle.
• PID digital temperature control with 0.1 °C setting sensitivity and ± 0.1 °C operating accuracy.
• Natural air circulation ensures uniform temperature distribution throughout the chamber.
• Perforated stainless steel shelves (2 pieces) and laboratory-oriented controls for repeatable procedures.

Technical specifications

• Operating temperature range: Ambient +5 °C to 100 °C
• Capacity (internal volume): 120 L
• Temperature sensor type: Linear temperature sensor
• Temperature control: PID digital control
• Load switching element: SSR
• Thermostat adjustment sensitivity: 0.1 °C
• Thermostat operating accuracy: ± 0.1 °C
• Thermometer reading sensitivity: 0.1 °C
• Internal temperature variations: ± 1 °C
• Circulation: Natural air circulation
• Circulation fan: Not available
• Timer (postpone/operation time): 1 min – 99 h 59 min
• Timing start: When set temperature is reached
• Safety system: Liquid expansion safety thermostat (30–110 °C)
• External cabinet material: Electrostatic powder coated steel
• Internal chamber material: Stainless steel
• Insulation material: Rock wool
• Shelves: Perforated stainless steel (2 pieces)
• Fuse: 6 A
• Total power: 1000 W
• Power supply: AC 190–240 V / 50–60 Hz
• Internal dimensions (W × D × H): 50 × 40 × 60 cm
• External dimensions (W × D × H): 79 × 53 × 79 cm
• Net weight: 55 kg
• Packaged weight: 62 kg
