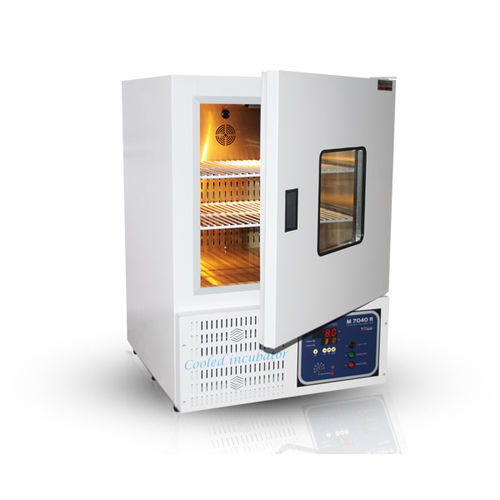

Forced convection laboratory incubator M 7040 R

for microbiologyfor bacteriologyfront-loading

Product information
The M 7040 R refrigerated laboratory incubator is designed for bacteriological and microbiological applications requiring precise temperature control. The unit provides a controlled, uniform environment for culture growth, research and quality control tasks in laboratory settings.

Advantages
Wide operating range from -10 °C to +80 °C combined with PID digital control and a Pt-100 sensor ensures accurate temperature regulation. The stainless steel internal chamber offers hygienic, corrosion-resistant conditions. Features such as an internal circulation fan, observation window, interior lighting and an ergonomic digital menu facilitate sample monitoring and repeatable results.

Technical specifications

• Model: M 7040 R
• Operating temperature range: -10 °C to +80 °C
• Capacity (internal volume): 125 L
• Thermoelement type: Pt-100
• Temperature control: PID digital control (sensitivity 0.1 °C)
• Load switching element: Solid State Relay (SSR)
• Thermostat operating accuracy: ±0.1 °C; internal temperature variation: ±1 °C
• Thermometer reading sensitivity: 0.1 °C
• Refrigerant: R134a
• Circulation fan: yes
• Observation window on door: yes
• Internal chamber illumination: yes
• Safety system (heating): Liquid expansion safety thermostat (30–90 °C)
• External cabinet material: Electrostatic oven painted steel
• Internal chamber material: Stainless steel
• Insulation material: Rock wool
• Shelves: 2 pieces, PVC coated steel wire
• Fuse: 16 A
• Total power consumption: 950 W
• Power supply: AC 190–240 V, 50–60 Hz
• Internal dimensions (W × D × H): 50 × 50 × 50 cm
• External dimensions (W × D × H): 65 × 75 × 95 cm
• Net weight: 83 kg
• Packaged weight: 100 kg
