Medical sterilizer M 420 P SS

laboratoryfor sterilization servicesfor the pharmaceutical industry

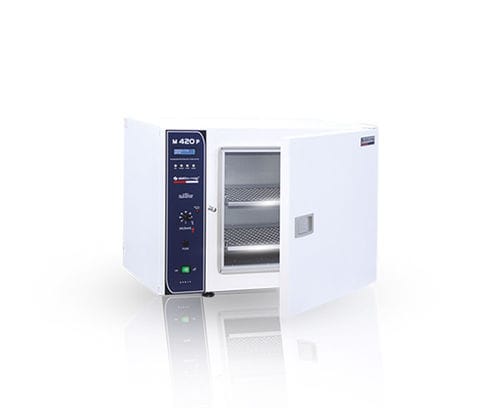

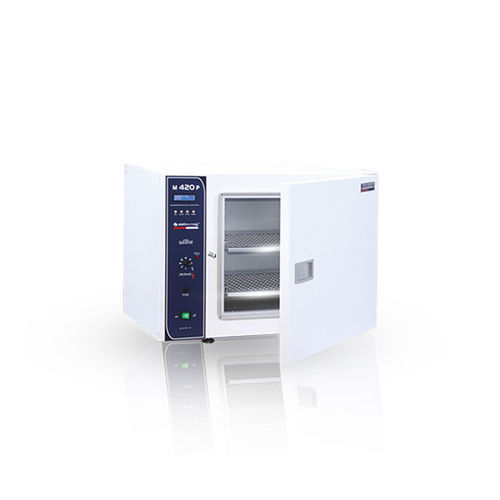

Product overview: The M 420 P SS Hot Air Sterilizer is designed for reliable dry-heat sterilization in medical, laboratory and research environments. It features a stainless steel chamber, PID digital control, Solid State Relay (SSR) load switching and a safety thermostat. The unit has a 48 L capacity and provides homogeneous heat distribution through natural air circulation, operating from +5 °C to 250 °C.

Key features:

• Chamber capacity: 48 L
• Temperature range: +5 °C to 250 °C
• Control: PID digital controller
• Load switching: SSR (Solid State Relay)
• Thermostat increments: 1 °C
• Thermostat accuracy: ± 1 °C; chamber accuracy: ± 2 °C
• Circulation: Natural air for homogeneous heating
• Chamber material: Stainless steel
• Power: 700 W; Supply: AC 190-240 V / 50-60 Hz
• Dimensions (W x D x H): 71 x 49 x 54 cm; Net weight: 33 kg

Technical specifications:

• Working temperature range: Ambient +5 °C to 250 °C
• Capacity (Chamber volume): 48 L
• Thermoelement type: J type
• Temperature control: PID digital
• Load switching element: SSR
• Thermostat setting increments: 1 °C
• Thermostat working accuracy: ± 1 °C
• Chamber temperature accuracy: ± 2 °C
• Circulating: Natural air circulation
• Power rating: 700 W
• Power supply: AC 190-240 V / 50-60 Hz
• Chamber material: Stainless steel
• Casing material: Sheet steel with stoved enamel paint
• Dimensions (W x D x H): 71 x 49 x 54 cm
• Net weight: 33 kg

Applications:

• Sterilization of instruments and glassware in hospitals and clinics
• Laboratory equipment and research samples
• Pharmaceutical and quality control environments where dry heat is required

Maintenance & safety:

• Annual calibration recommended to ensure accurate temperature control
• Use the safety thermostat and follow local electrical and ventilation regulations
• Clean and inspect the stainless steel chamber regularly to maintain hygiene

FAQ:

• Q: How often should the sterilizer be calibrated? A: Annual calibration is recommended to maintain temperature accuracy and performance.
