Medical sterilizer M 6040 P SS

surgicallaboratorydry heat

Overview

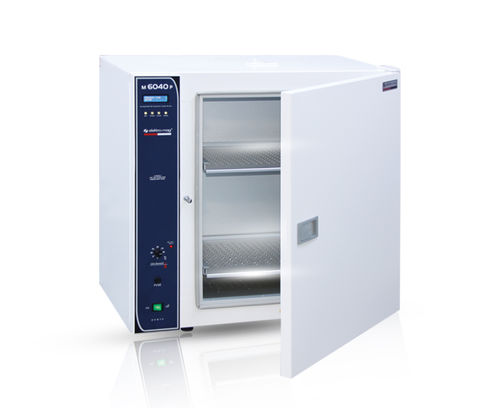

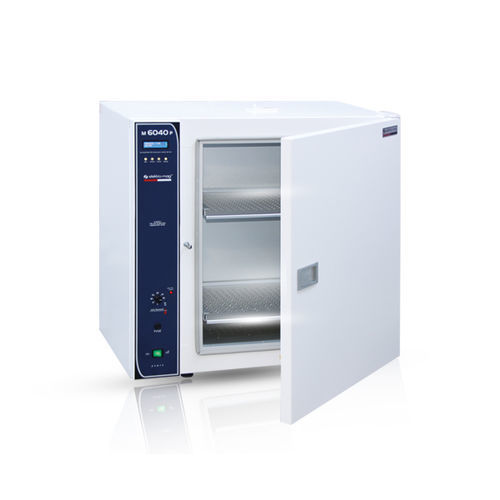

M 6040 P SS is a hot air sterilizer intended for dry-heat sterilization of medical instruments, laboratory glassware and heat-stable materials. The unit features a 120 L stainless steel chamber, natural air circulation for uniform temperature distribution and PID digital control for steady operation.

Key specifications

• Model: M 6040 P SS
• Chamber volume: 120 liters
• Working temperature range: Ambient temperature +5°C to 250°C
• Thermoelement: J Type
• Temperature control: PID digital
• Load switching element: SSR (Solid State Relay)
• Thermostat setting increments: 1°C
• Thermometer display increments: 1°C
• Chamber temperature accuracy: ±2°C
• Safety thermostat: liquid expansion type (50-300°C)
• Shelves: 2 perforated stainless steel shelves
• Chamber material: Stainless steel
• Insulation material: Rock wool
• Power rating: 1500W
• Power supply: AC 190-240V / 50-60Hz
• Dimensions (W x H x D): 79 x 79 x 53 cm
• Net weight: 55 kg
• Gross weight: 62 kg

Design and construction

• Stainless steel chamber and perforated shelves facilitate cleaning and corrosion resistance.
• Rock wool insulation reduces thermal loss and stabilizes internal temperature.
• Natural air circulation promotes even heat distribution for consistent sterilization results.
• PID digital controller combined with SSR provides accurate and stable temperature control.

Applications

• Dry heat sterilization of surgical instruments, metal tools, glassware, powders and dressings suitable for medical and laboratory environments.
• Quality control and research laboratories requiring controlled dry-heat processes.

Compliance & safety

• Safety thermostat with liquid expansion (50-300°C) provides over-temperature protection.
• Electrical compatibility: AC 190-240V / 50-60Hz. Install according to local electrical and safety standards.

Ordering & maintenance

• Supplied with two perforated stainless steel shelves. Additional accessories and spare parts available on request.
• Recommended periodic verification of temperature accuracy and safety thermostat as part of maintenance procedures.
