Medical sterilizer M 5040 P SS

laboratorydry heathot air

Product description

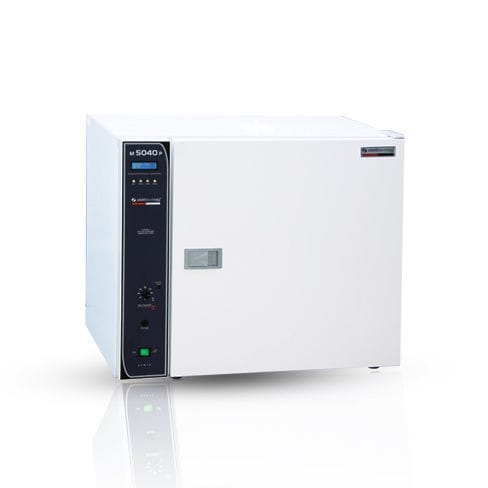

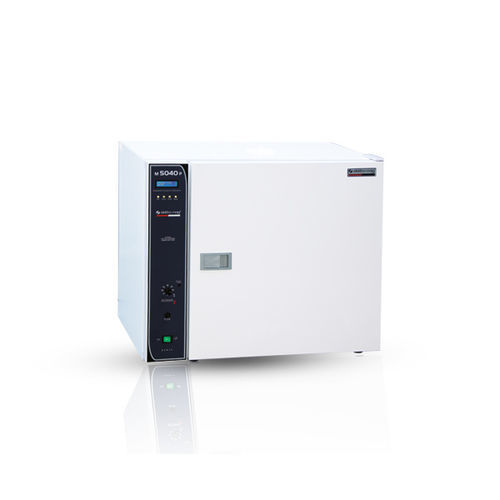

The M 5040 P SS Hot Air Sterilizer is a dry‑heat sterilization unit with a 100 L stainless steel chamber, intended for medical and laboratory use. It features PID digital temperature control, SSR load switching and natural air circulation to promote homogeneous temperature distribution. The unit is configured for process timing and includes a liquid‑expansion safety thermostat.

Applications

• Dry heat sterilization of surgical instruments, glassware and heat‑resistant laboratory tools
• Use in medical labs, clinics, research and industrial quality control
• Processes that require moisture‑free sterilization

Technical specifications

• Working temperature range: Ambient temperature +5 °C to 250 °C
• Capacity (Chamber volume): 100 L
• Type of thermoelement: J type
• Temperature control: PID digital control
• Load switching element: SSR (Solid State Relay)
• Thermostat setting increments: 1 °C steps
• Thermostat working accuracy: ±1 °C
• Thermometer display increments: 1 °C steps
• Chamber temperature accuracy: ±2 °C
• Circulating: Natural air circulation ensuring homogeneous heat distribution
• Postpone / Process time: 1 min – 99 hours 59 min
• Timing begins: When set temperature is reached
• Safety measure: Safety thermostat with liquid expansion (50-300 °C)
• Casing material: Sheet steel finished in stoved enamel paint
• Chamber material: Stainless steel
• Insulation material: Rock wool
• Shelf: 2 perforated stainless steel
• Fuse: 10 Amps
• Power rating: 1500 W
• Power supply: AC 190-240 V / 50-60 Hz
• Chamber dimensions (w x h x d): 50 x 50 x 40 cm
• Overall dimensions (w x h x d): 79 x 69 x 53 cm
• Net weight: 53 kg
• Gross weight: 59 kg

Safety and compliance

The unit includes a liquid‑expansion safety thermostat and SSR protection for stable heating. Casing and insulation minimize surface temperature and heat loss. Install and operate according to local electrical and medical device safety standards.

Category information

This product belongs to Hot Air Sterilizers with stainless steel chambers, commonly used in medical and laboratory environments for moisture‑free sterilization where corrosion resistance and hygienic surfaces are required.

FAQ

Q: How is even heat distribution achieved? A: The sterilizer uses natural air circulation within the chamber to ensure homogeneous heat distribution, which supports reliable dry‑heat sterilization.
