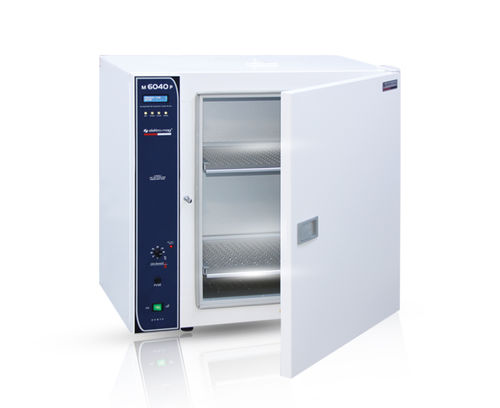

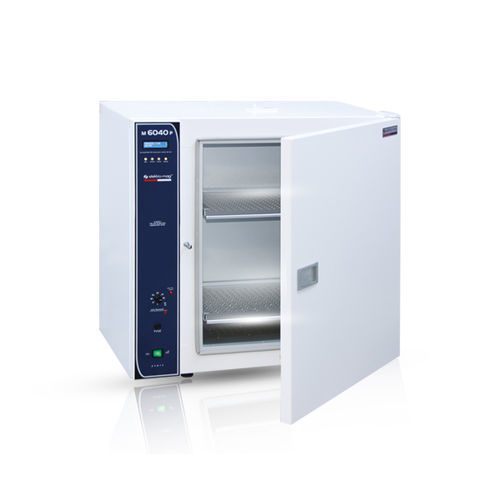

Medical sterilizer M 6040 P SS

laboratorydry heathot air

Product description
The M 6040 P SS hot air sterilizer from Elektro-mag is designed for reliable dry-heat sterilization in laboratory and medical environments. It operates from ambient temperature +5 °C up to 250 °C and is equipped with PID digital control and SSR load switching for precise temperature regulation with 1 °C setpoint increments and control accuracy within ±1 °C. The 120 liter stainless steel chamber includes a circulating fan to promote homogeneous temperature distribution. A liquid-expansion safety thermostat and rock wool insulation enhance safety and thermal stability. The unit is supplied with two perforated stainless steel shelves and a stoved-enamel sheet steel casing.

Technical table

• Working temperature range: Ambient temperature +5°C to 250°C
• Capacity (Chamber volume): 120 liters
• Type of thermoelement: J type
• Temperature control: PID Digital control
• Load switching element: SSR (Solid State Relay)
• Thermostat setting increments: 1°C steps
• Thermostat working accuracy: ± 1°C
• Thermometer display increments: 1°C steps
• Chamber temperature accuracy: ± 2°C
• Circulating fan: Available
• Postpone/Process time: 1 min – 99 hours 59 min
• Safety measure: Safety thermostat with liquid expansion (50-300°C)
• Casing material: Sheet steel finished in stoved enamel paint
• Chamber material: Stainless steel
• Insulation material: Rock wool
• Shelf: 2 Perforated stainless steel
• Power rating: 1500 W
• Power supply: AC 190-240 V / 50-60 Hz
• Chamber dimensions (w x h x d): 50 x 60 x 40 cm
• Overall dimensions (w x h x d): 79 x 79 x 53 cm
• Net weight: 55 kg
• Gross weight: 62 kg

Key features

• Uniform heat distribution ensured by internal circulating fan for consistent sterilization results
• Precise PID control with SSR switching and 1 °C setpoint increments for repeatable processes
• Wide operating range up to 250 °C suitable for multiple dry-heat protocols
• Liquid-expansion safety thermostat for reliable overtemperature protection
• Easy-to-clean 120 L stainless steel chamber with two perforated shelves for load flexibility
• Compact footprint and standard AC 190–240 V supply for laboratory environments
