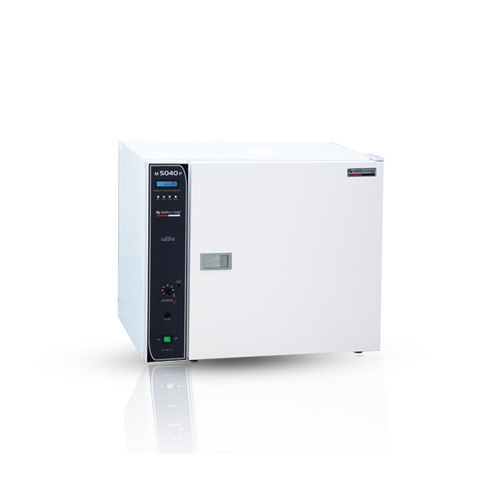

Laboratory sterilizer M 5040 P SS

for researchhospitaldry heat

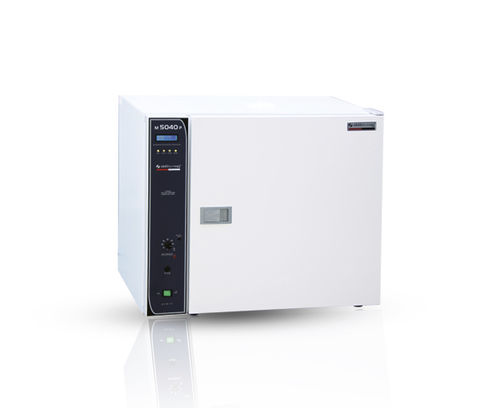

Product overview: The Elektro-mag M 5040 P SS hot air sterilizer provides controlled dry-heat sterilization from ambient +5 °C up to 250 °C. PID digital control with an SSR (solid-state relay) enables temperature regulation in 1 °C increments with controller accuracy of ±1 °C and chamber stability around ±2 °C. A circulating fan promotes uniform temperature distribution inside the 100 L stainless steel chamber, making the unit suitable for laboratory and clinical sterilization tasks.

Specifications:

• Working temperature range — Ambient temperature +5 °C to 250 °C
• Capacity (Chamber volume) — 100 lt
• Type of thermoelement — J type
• Temperature control — PID Digital control
• Load switching element — SSR (Solid State Relay)
• Thermostat setting increments — in 1 °C steps
• Thermostat working accuracy — ± 1 °C
• Thermometer display increments — in 1 °C steps
• Chamber temperature accuracy — ± 2 °C
• Circulating fan — Available
• Postpone / Process time — 1 min – 99 hours 59 min
• Timing begins — When reached set temperature value
• Safety measure — Safety thermostat with liquid expansion (50-300) °C
• Casing material — Sheet steel finished in stoved enamel paint
• Chamber material — Stainless steel
• Insulation material — Rock wool
• Shelf — 2 Perforated stainless steel
• Fuse — 10 Amps
• Power rating — 1500W
• Power supply — AC 190-240 V / 50-60 Hz
• Chamber dimensions (w x h x d) — 50 x 50 x 40 cm
• Overall dimensions (w x h x d) — 79 x 69 x 53 cm
• Net weight — 53 kg
• Gross weight — 59 kg

Applications: Designed for sterilization of glassware, metal instruments and heat-resistant materials in clinical laboratories, hospital departments and research facilities. The stainless steel chamber and controlled heating profile support routine sterilization cycles and maintenance workflows.

Safety and maintenance: The unit includes a safety thermostat with liquid expansion and over-temperature protection. Stainless steel interior facilitates cleaning and reduces corrosion risk. Regular verification of fuses, thermocouples and door seals is recommended to ensure consistent performance.

FAQ:
What is the advantage of a stainless steel chamber? Stainless steel chambers offer higher durability, resist corrosion, and can withstand extreme temperature fluctuations, ensuring long-term reliability in sterilization processes.
