Indocyanine green fluorescence system LUCERNA FLUOROVISION

Overview
Lucerna Fluorovision is an imaging system optimized for ICG fluorescence and standard endoscopic visualization. It provides full HD (1080p) imaging with balanced color reproduction and low-noise performance for consistent intraoperative viewing. The platform integrates responsive image processing, intuitive controls and a medical-grade touchscreen to support efficient surgical workflows.

Key features

• Clear Full HD visualization: High-quality 1080p imaging for detailed surgical visualization.
• Natural colour reproduction: Balanced image processing for consistent tissue colours and clear separation of anatomical structures.
• Low-noise, detailed imaging: High-quality sensing preserves fine tissue detail under typical surgical conditions.
• Fluorescence-ready platform: Optimized for ICG fluorescence across endoscopic procedures.

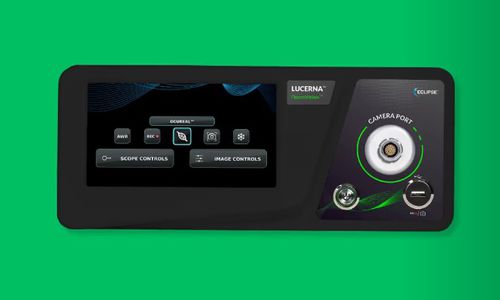

• Large, intuitive touchscreen: Medical-grade 7-inch capacitive touchscreen for quick access to camera functions, image settings, zoom and freeze.
• Controls at the camera head: White balance, freeze, snapshot and recording accessible on the camera head; four programmable buttons.
• Stable imaging during procedures: Image processing maintains a clear, balanced view during movement, irrigation and illumination changes.
• Robust camera head: IPX7-rated camera head with a 3.0 m highly-flexible cable; compatible with standard rigid scope adapters.

Use cases

• Endoscopic procedures requiring ICG fluorescence guidance combined with natural colour visualization.
• Surgical workflows that require touchscreen control and camera-head programmable functions for fast intraoperative adjustments.

Technical specifications

• Power: 240V DC
• System Resolution: 1080p
• Output Frame Rates: 60 Hz
• Video I/O: 3G-SDI ×2, DVI ×1
• DVI Cable Length: 1 m
• Touch Screen: Medical-grade 7-inch capacitive touchscreen
• Sensor: Full HD Sony CMOS sensor
• Effective Pixels: 1920 × 1080 effective
• Native Output Resolution: 1080p
• Minimum Illumination: ≤ 0.5 Lux
• SNR: >56 dB
• Electronic Zoom: 10 levels
• Controls: 4 programmable buttons
• Ingress Protection: IPX7
• Size / Weight / Cable: 109 × 50 × 49 mm; 300 g (incl. cable); 3.0 m highly-flexible cable
• Optical Mount: Compatible with standard rigid scope adapter
