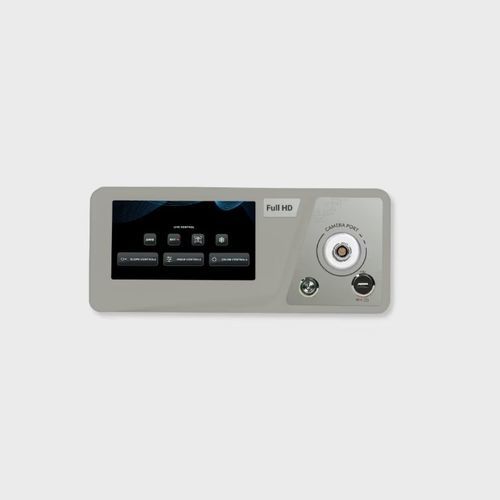

1080p OR video system

Full HDOEM

Product overview
Reliable 1080p60 imaging platform designed for OEM and private-label surgical programmes. Combines Full HD 1080p60 capture with natural colour reproduction, low-noise processing and stable imaging during movement, irrigation and changing illumination. Camera head rated IPX7 with 4 programmable buttons for procedure control and integration.

Key highlights

• Clear Full HD 1080p visualization at 60 FPS
• Intelligent exposure control for varying illumination
• Natural tissue colour reproduction
• Low-light performance with low noise
• Stable imaging during instrument movement and irrigation
• IPX7 camera head with 4 programmable buttons

Caractéristiques / spécifications techniques

• System resolution: 1080p effective (1920 × 1080)
• Output frame rates: 60 FPS
• Primary video output: 3G-SDI ×2
• Auxiliary video output: DVI-D ×1
• Display: 7" medical grade capacitive touchscreen
• Recording & capture: via standard video outputs
• Primary controls: settings accessible via touchscreen
• Advanced controls: exposure, colour, noise-reduction
• Minimum illumination: ≤ 0.1 Lux
• SNR: >56 dB
• Electronic zoom: 10 levels
• Ingress protection: IPX7 (camera head)
• Cable: 3.0 m high-flex
• Optical mount: compatible with rigid and semi-rigid endoscopes

Compatibility & integration

• Outputs suitable for integration with recording systems and OR displays (3G-SDI, DVI-D)
• Touchscreen and programmable buttons for workflow mapping
• OEM-friendly interface for private-label firmware and accessory integration
• Mechanical compatibility with standard rigid/semi-rigid optical mounts

Clinical applications

• Laparoscopy and general endoscopic procedures
• ENT, urology and arthroscopy
• Minimally invasive surgical workflows requiring Full HD visualization

Ordering & support

• Available for OEM/private-label integration and custom configuration
• Technical support available for system integration and validation
• Programmable controls and interface options for hospital workflows
