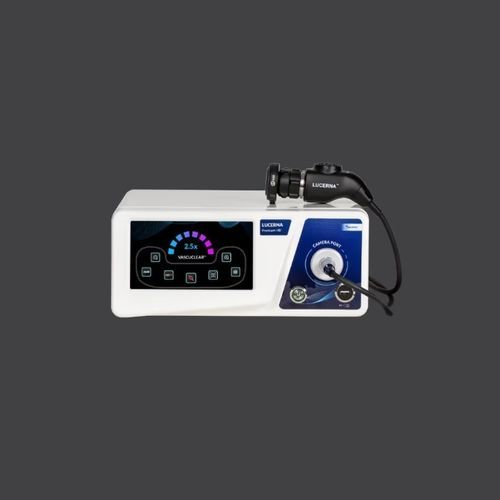

1080p OR video system Lucerna Premium

HDFull HDAVI

Product overview
Endoscopic imaging system engineered for surgical environments. Integrates TrueChip 1080p sensing, OcuReal colour management and LumiFlux illumination control to deliver consistent Full HD visualization for endoscopic procedures. Includes FocusNForget optics and VascuClear mode for enhanced vascular contrast, with CaseTrace recording for H.264 video and JPEG still capture.

Key highlights

• TrueChip high-fidelity 1080p acquisition
• OcuReal colour management
• LumiFlux illumination control
• VascuClear specialty vascular mode
• FocusNForget surgical optics
• CaseTrace H.264 AVI recording and JPEG stills

Product specifications (table)
System Resolution: 1080p / 1920 × 1080
Output Frame Rates: 60 FPS / 60 Hz
Video Outputs: 3G-SDI ×2, DVI-D ×1
Display: 7" capacitive touchscreen
Recording/Capture: CaseTrace H.264 AVI, JPEG stills
Storage Interface: USB 2.0 ×2 (front and rear)
Specialty Modes: OcuReal, VascuClear
Sensor Type: TrueChip Premium HD architecture
Effective Pixels: 1920 × 1080
Minimum Illumination: ≤ 0.5 Lux
SNR: >56 dB
Electronic Zoom: 8 levels (0.5× to 4.0×)
Buttons: 4 programmable
Ingress Protection: IPX7
Optical Mount: C-mount / rigid scope adapter

Technical specifications

• System Resolution: 1080p / 1920 × 1080
• Output Frame Rates: 60 FPS / 60 Hz
• Video Outputs: 3G-SDI ×2, DVI-D ×1
• Display: 7" capacitive touchscreen
• Recording/Capture: CaseTrace H.264 AVI, JPEG stills
• Storage Interface: USB 2.0 ×2 (front and rear)
• Specialty Modes: OcuReal, VascuClear
• Sensor Type: TrueChip Premium HD architecture
• Effective Pixels: 1920 × 1080
• Minimum Illumination: ≤ 0.5 Lux
• SNR: >56 dB
• Electronic Zoom: 8 levels (0.5× to 4.0×)
• Buttons: 4 programmable
• Ingress Protection: IPX7
• Optical Mount: C-mount / rigid scope adapter
