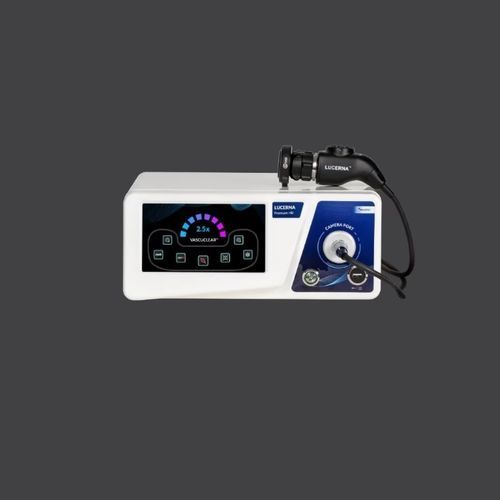

3840 × 2160 OR video system Lucerna

4KMP4

Product Overview
The Lucerna 4K is a surgical 4K camera system designed for endoscopic and minimally invasive procedures. It delivers surgeon-centered imaging with true 1:1 4K capture, AI visibility tools, HDR processing and integrated CaseTrace recording to support efficient OR workflow.

Key highlights

• True 4K output: 3840 × 2160 with 1:1 pixel fidelity
• AI spatial augmentation and smoke/fog/particle clearance
• Targeted enhancement modes and HDR processing
• Large depth of field: 3–200 mm
• Quiet operation: <50 dB
• CaseTrace recording: MP4 video and JPEG/BMP stills

Specifications
System Resolution: 3840 × 2160 (UHD)
Output Frame Rates: 60 Hz
Video Outputs: 4K HDMI 2.0, 3G-SDI, DVI-D
Display: 7" capacitive touchscreen
Recording/Capture: MP4 video, JPEG/BMP stills
Storage Interface: USB 2.0 ×2, USB 3.0 ×1
Specialty Modes: AI visibility, de-moiré, scene presets, smoke/fog/particle clearance
Sensor Type: 1/1.8" 4K UHD (10 MP)
Effective Pixels: 3840 × 2160
Minimum Illumination: ≤ 0.5 Lux
SNR: 56 dB
Electronic Zoom: 0.5× – 5.0×
Buttons: 4 programmable
Ingress Protection: IPX7
Optical Mount: F22 (bayonet to coupler)

Applications

• Laparoscopy
• Urology
• Gynecology
• ENT (otorhinolaryngology)
