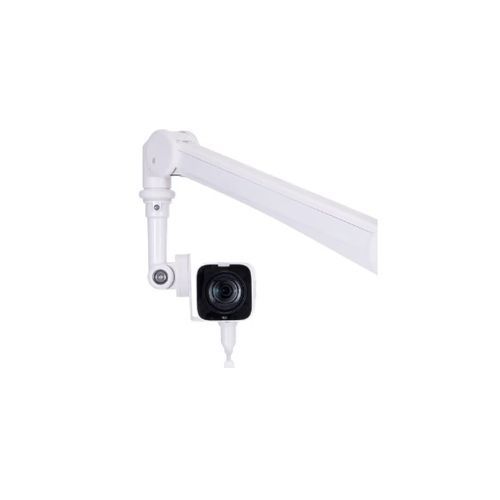

Open surgery video camera

for telemedicinesurgicalsurgical field

Overview
Arm-mounted 4K camera designed for operating room recording and display. Integrates with surgical arm systems to enable precise positioning, stable capture and recording or live viewing for documentation, training and telemedicine. Compatible with sterile-field workflows; steel construction with 4 kg load capacity.

Key features

• 4K Ultra HD video at up to 60 fps for smooth surgical documentation
• 12x optical zoom for detailed close-up views without leaving the sterile field workflow
• SONY 1/2.8-inch CMOS sensor providing accurate colour reproduction and low-light sensitivity (minimum illumination 0.5 lux)
• Wide positioning range: Tilt +20° to -45° and swivel ±270° for comprehensive coverage of the surgical field
• Multiple outputs: HDMI, 3G-SDI, USB 3.0 Type-C, RJ45 for connection to displays, recorders and streaming devices
• PoE support: IEEE 802.3at Power over Ethernet for consolidated power and data over a single cable

Product specifications (table)
Image Sensor: SONY 1/2.8-inch CMOS sensor
Effective Pixels: 8.4 Megapixels (16:9)
Zoom: 12x optical zoom
Video Output Format: 4K UHD (60/50/30/25 fps), 1080 FHD (60/50/30/25/24 fps), 720P HD (60/50 fps)
Video Encoding: H.264, H.265, MJPEG
Focus Mode: Auto, Manual
Aperture: F1.6 ~ F11
Minimum Illumination: 0.5 Lux
Horizontal View: 72.8° ~ 6.8°
Vertical View: 44.1° ~ 3.8°
Output Interface: HDMI, 3G-SDI, USB3.0 (Type C), RJ45
PoE: IEEE 802.3at (RJ45 Network Port)
Tilt Range: +20° ~ -45°
Swivel Range: +270° ~ -270°
Load Capacity: 4 Kg
Material: Steel

Technical specifications

• Image Sensor: SONY 1/2.8-inch CMOS sensor
• Effective Pixels: 8.4 Megapixels (16:9)
• Zoom: 12x optical zoom
• Video Output Format: 4K UHD (60/50/30/25 fps), 1080 FHD (60/50/30/25/24 fps), 720P HD (60/50 fps)
• Video Encoding: H.264, H.265, MJPEG
• Focus Mode: Auto, Manual
• Aperture: F1.6 ~ F11
• Minimum Illumination: 0.5 Lux
• Horizontal View: 72.8° ~ 6.8°
• Vertical View: 44.1° ~ 3.8°
• Output Interface: HDMI, 3G-SDI, USB3.0 (Type C), RJ45
• PoE: IEEE 802.3at (RJ45 Network Port)
• Tilt Range: +20° ~ -45°
• Swivel Range: +270° ~ -270°
• Load Capacity: 4 Kg
• Material: Steel
