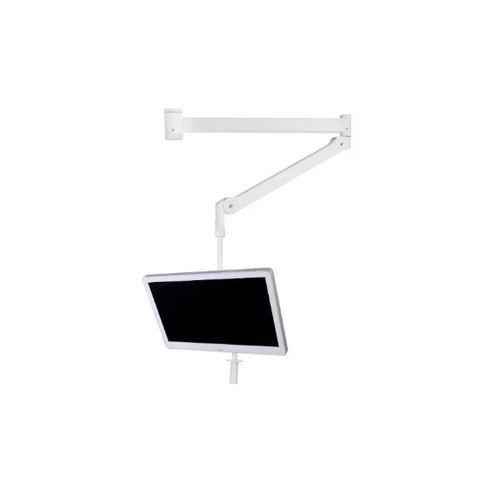

Surgical monitor support arm

for displaysceiling-mountedsecure

Product Overview
Ceiling-mounted monitor arm for surgical displays up to 32 inches with a horizontal reach of up to 1800 mm. Integrates with surgical lighthead suspension systems or can be installed as a standalone ceiling arm. Designed for precise, secure positioning of monitors in operating rooms with internal cable routing and adjustable height mechanism.

Key features

• High load capacity: supports up to 15 kg for single monitors up to 32 inches.
• Wide range of motion: vertical movement 40° up and 40° down, with ≥330° arm rotation around the vertical axis.
• Extended horizontal reach: up to 1800 mm for flexible viewing angles.
• Effortless positioning: spring-balanced or counterbalanced height-adjustment mechanism.
• Integrated cable management: internal routing for power and signal cables.
• Versatile mounting options: compatible with surgical lighthead suspension systems or standalone ceiling installation.

Product specifications
Mounting Type — Ceiling-mounted; compatible with surgical light head suspension systems and standalone configurations
Application — Secure positioning of surgical monitors in operating theatres
Load Capacity — Up to 15 kg (single monitor up to 32 inches)
Vertical Movement — 40° Up & 40° Down
Arm Rotation — ≥ 330° around vertical axis
Horizontal Reach — Up to 1800 mm
Height Adjustment Mechanism — Spring-balanced or counterbalanced arm for smooth positioning
Cable Management — Integrated internal cable routing for power and signal cables

Technical specifications

• Mounting Type: Ceiling-mounted; compatible with surgical light head suspension systems and standalone configurations
• Application: Secure positioning of surgical monitors in operating theatres
• Load Capacity: Up to 15 kg (single monitor up to 32 inches)
• Vertical Movement: 40° Up & 40° Down
• Arm Rotation: ≥ 330° around vertical axis
• Horizontal Reach: Up to 1800 mm
• Height Adjustment Mechanism: Spring-balanced or counterbalanced arm
• Cable Management: Integrated internal cable routing for power and signal cables
