Operating room control unit

for operating roomsfor lightingdigital

Product overview

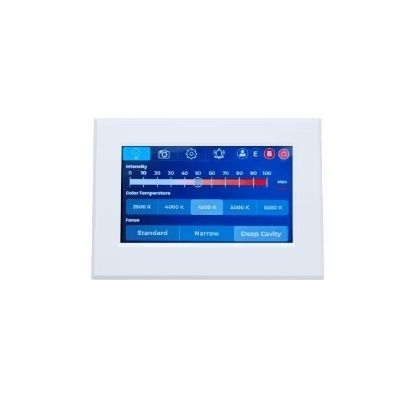

The 7-inch wall-mounted capacitive touchscreen controller WM-7 enables wireless control of single, dual or triple surgical light systems from a sterile wall-mounted location. It provides synchronized operation of multiple light heads and optional integrated camera control through a single intuitive interface, with a hygienic design suitable for operating theatres.

Key features

• 7-inch capacitive touchscreen (800 × 480) with icon-based controls
• Wireless wall-mounted control for easy access in the theatre
• Simultaneous synchronized control of multiple light heads
• Adjust intensity, colour temperature and pre-set lighting modes from one interface
• Integrated camera control when a compatible camera is installed
• Hygienic flush or surface mounting for easy cleaning and infection control

Product specifications
Mounting Type: Wall-mounted, flush or surface installation
Application: Remote control of surgical lighting systems and integrated camera (when equipped)
Control Type: Capacitive touchscreen interface with icon-based controls
Display Size: 7-inch capacitive touchscreen
Display Resolution: 800 × 480 pixels
Supported Light Configuration: Single, dual, or triple surgical light systems
Synchronized Control: Yes – simultaneous control of multiple light heads
Operating Voltage: 100–240 V AC, 50/60 Hz
Power Consumption: < 10 W

Technical specifications

• Display: 7-inch capacitive touchscreen, 800 × 480 pixels
• Interface: Icon-based touchscreen controls
• Control: Wireless wall-mounted remote for single/dual/triple light systems
• Synchronization: Simultaneous control of multiple light heads
• Lighting control: Intensity, colour temperature, lighting modes
• Camera control: Integrated when camera equipped
• Mounting: Flush or surface wall installation
• Operating voltage: 100–240 V AC, 50/60 Hz
• Power consumption: less than 10 W
