Medical display Infini Canvas

operating roomsurgicalfull HD

Product overview

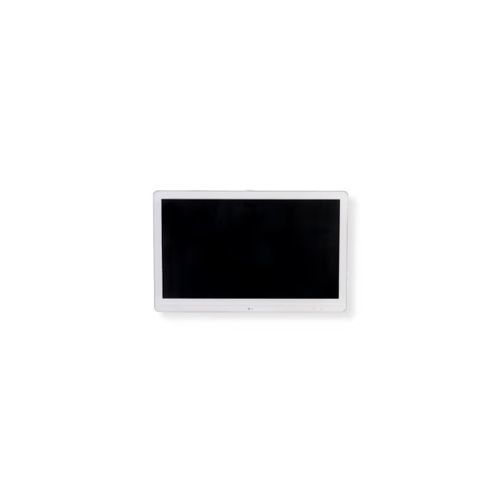

Infini Canvas is a medical‑grade monitor series engineered for clinical and surgical environments. Models sized for monitoring stations and surgical displays (24", 27", 32"), available with IPS panels in Full HD and 4K options. Metal enclosures with tempered glass and IP65 protection support infection‑control workflows and durable use in hospital settings.

Key features

• Multiple screen sizes: 24", 27", 32" for monitoring stations and surgical displays.
• Resolution options: Full HD (1080p) 60 fps and 4K (3840 × 2160) 60 fps.
• Wide viewing angles: 178° horizontal / 178° vertical for room visibility.
• High brightness and contrast: model-dependent ranges up to 700 cd/m² and up to 1500:1 contrast.
• Versatile connectivity: HDMI, DVI‑D, SDI, VGA, USB, RJ45; additional options per model (S‑Video, BNC, DP, RGB).
• Durable design: metal enclosure, tempered glass front and IP65 protection for clinical use.
• Regulatory compliance: selected models certified to IEC/EN 60601‑1 series and applicable EMC/ safety standards.

Ordering information — Industrial Monitors (Small to Medium)
Models — 24MF, 27MF, 32MF, 27M4K, 32M4K
Display Size — 24", 27", 32"
Resolution — 1080p 60 fps / 4K 60 fps
Brightness — 350 cd/m² (typ.)
Contrast — 1500:1 (typ.)
Viewing Angle — 178°/178° (H x V)
Screen Type — IPS
Protection — IP65
Input: Video — HDMI x 2, DVI‑D x 1

Ordering information — Large Industrial & Surgical FHD Monitors
Models — 43M4K, 55M4K, 24SF, 27SF, 32SF
Display Size — 24", 27", 32", 43", 55"
Resolution — 4K 60 fps / 1920 x 1200 / 1920 x 1080 60 fps
Brightness — 300–450 cd/m² (model-dependent)
Contrast — 1000:1–1500:1
Input: Video — HDMI x 2, DVI‑D x 1; optional SDI, S‑Video, BNC, DVI, HDMI, DP, RGB

Ordering information — High-End 4K Surgical Monitors
Models — 32S4K, 55S4K
Display Size — 32", 55"
Resolution — 4K (3840 × 2160) 60 fps
Brightness — 500–700 cd/m²
Contrast — 1100:1–1350:1
Compliances — IEC/EN 60601‑1, UL60601‑1, IEC/EN 60601‑1‑2 (EMC), CE, FCC (Class A)

Technical specifications

• Series: Infini Canvas
• Intended use: industrial, medical and surgical‑grade monitors for clinical and OR environments
• Available display sizes: 24", 27", 32", 43", 55"
• Panel type: IPS
• Resolution options: 1080p (Full HD) 60 fps; 4K (3840 × 2160) 60 fps; other supported resolutions include 1920 × 1200 and 1920 × 1080
• Brightness: model-dependent (typical 300–700 cd/m²)
• Contrast ratio: model-dependent (1000:1–1500:1)
• Viewing angle: 178° H / 178° V
• Protection rating: IP65
• Construction: metal enclosure with tempered glass front
• Video inputs / connectivity: HDMI, DVI‑D, SDI, VGA, USB, RJ45; optional S‑Video, BNC, DP, RGB
• Referenced models: 24MF, 27MF, 32MF, 27M4K, 32M4K, 43M4K, 55M4K, 24SF, 27SF, 32SF, 32S4K, 55S4K
• Selected compliances: IEC/EN 60601‑1, UL60601‑1, IEC/EN 60601‑1‑2 (EMC), CE, FCC (Class A)
