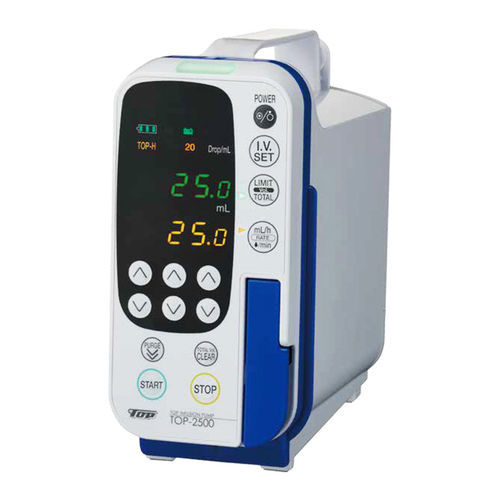

Multi-function infusion pump TOP-2500

volumetricfor drug deliveryportable

Overview
The TOP-2500 is a volumetric infusion pump designed to administer medical fluids in a controlled, preset manner for a wide range of infusion therapies. It is a lightweight, compact device engineered for straightforward preparation and stepwise operation from top to bottom.

Operation and Design
The pump offers two operation modes: a General mode accepting compatible infusion sets, and an H-Series mode that provides enhanced control and accuracy when used with designated TOP H-Series infusion sets. The IV tubing is routed along a guided slot with peristaltic fingers and passes upstream and downstream occlusion sensors plus an air-in-line detector, all secured behind a front access door. A tube clamp prevents free flow when the door is open. Illuminated keys and a door light support operation in low-light environments.

Safety
Events are signalled by audible alarms and multi-coloured indicators. An internal rechargeable battery supports continued operation during power loss or patient transport and can provide up to 4 hours of operation when fully charged.

Specifications

• Infusion Sets: Designated Infusion Sets TOP H-Series, General 20 drops/ml Infusion Sets, General 60 drops/ml Infusion Sets (various brands)
• Flow Rate Range Designated 20 drops/ml IV Set: 1 ~ 1,200 ml/h; Micro Mode: 0.1 ~ 99.9 ml/h
• Flow Rate Range Designated 60 drops/ml IV Set: 1 ~ 150 ml/h; Micro Mode: 0.1 ~ 99.9 ml/h
• Flow Rate Range General 20 drops/ml IV Set: 1 ~ 360 ml/h; Micro Mode: 1 ~ 120 drops/min
• Flow Rate Range General 60 drops/ml IV Set: 1 ~ 150 ml/h; Micro Mode: 1 ~ 150 drops/min
• Flow Rate Range Transfusion Set: 1 ~ 1,200 ml/h
• Purge Flow Rate: Maximum flow in each flow rate range
• KVO (Keep Vein Open) Flow Rate: 0.1 – 10.00 ml/h (1 ml/h increments)
• Volume Limit Range: 1 – 9,999 ml (1 ml steps)
• Total Volume Range: 0 – 9,999 ml (1 ml steps)
• Infusion Accuracy Designated IV Set (H-Series): ml/h ±5%; drops/min ±2%
• Infusion Accuracy General IV Set: ml/h ±10% (distilled water or saline); drops/min ±2%
• Infusion Accuracy Transfusion Set: ml/h ±10%; drops/min ±2%
• Occlusion Detection Pressure Designated IV Set (H-Series): 4-step selection — PrdE 3 High (≤150 kPa), PrdE 2 Medium (≤120 kPa), PrdE 1 Low (≤80 kPa), PrdE 0 Lowest (≤40 kPa)
• Occlusion Detection Pressure General IV Set: 2-step selection — PrST 1 High (≤150 kPa), PrST 0 Low (≤80 kPa)
• Air-in-Line Detection Sensitivity: 3-step selection — Air 0 High, Air 1 Medium, Air 2 Low
• Alarms: High priority, Low priority, Information signals
• Dimensions and Weight: 92 x 181 x 189 mm; approx. 1.9 kg

Special Functions
History, Key-lock, KVO (Keep Vein Open), Nurse call signal output, Auto power off, Key light, Door light, Total volume display, Maintenance timer, Battery refresh, IV set limit, Standby mode, Maintenance mode, Buzzer volume setting, Buzzer on/off, Date and time setting, Clear total volume, Purge, External communication, Anti-bolus, Repeat alarm.

Technical specifications

• Model: TOP-2500
• Infusion set compatibility: TOP H-Series and general 20/60 drops/ml sets
• Flow rate ranges: see Specifications block above (vary by IV set type)
• KVO flow range: 0.1–10.00 ml/h
• Volume limit and total volume range: up to 9,999 ml
• Infusion accuracy: ±5% (H-Series), ±10% (general/transfusion) for ml/h
• Occlusion detection: multi-step selection with defined pressure thresholds
• Air-in-line detection: 3 sensitivity levels
• Alarms: multiple priority levels and information signals
• Dimensions: 92 x 181 x 189 mm; Weight: approx. 1.9 kg
