Chemotherapy syringe pump TOP-5530

anesthesia

Product overview

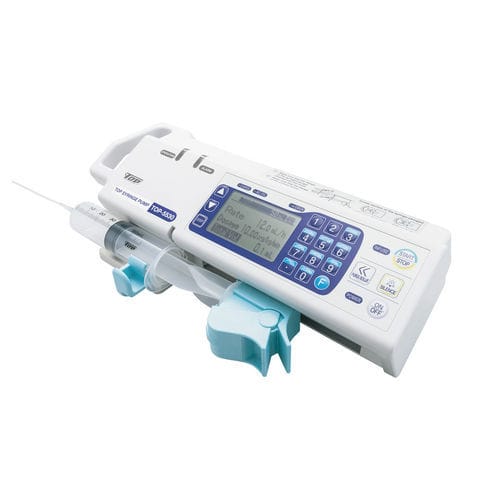

The TOP-5530 is a human-rated syringe pump designed for clinical infusion on general wards and during anesthesia. It supports infusion of anaesthetics, chemotherapeutic agents, oxytocics, anticoagulants, parenteral nutrition and blood transfusions. A supplemental bolus can be delivered during infusion either manually or with a preset volume.

Safety and reliability
Audible and visible alarms are configurable by priority. An internal rechargeable battery provides approximately 12 hours of operation when fully charged to maintain infusion during power loss or transport. A Drug Library is available when using the External Communication Connector to assist selection of appropriate infusion settings.

Functions

• Auto Power Off
• Alarm Reminder
• Power Supply Switch Alarm
• KVO (Keep Vein Open)
• Standby
• Buzzer Setting
• History
• Key Lock
• Syringe Brand Limit
• Volume Limit Display Switching
• Battery Refresh
• Maintenance Timer
• Flow Rate Upper Limit Value Setting
• User Syringe Registration
• Drug Library

Notes
Alarms use priority levels (High Priority, Low Priority, Information Signals). Occlusion detection sensitivity is adjustable (High, Middle, Low, Very Low). For full specifications, functions and detailed explanations, refer to the product brochure.

Technical specifications

• Compatible syringes: 10, 20, 30, 50 ml (various brands)
• Flow rate range: 0.10 to 1,200 ml/h (0.1 ml/h increments) depending on syringe size
• Agent range: 0.1 to 1,000 mg
• Solution range: 0.1 to 1,000 ml
• Weight range (for weight-based settings): 0.1 to 300 kg
• KVO rate range (concentration units): 0.01–99.99 µg/kg/min, 0.01–99.99 mg/kg/h
• KVO rate range (volume): 0.1 to 5.0 ml/h (0.1 ml/h step)
• Bolus rate: 300 to 1,200 ml/h depending on syringe size
• Bolus volume: 0.1–50.0 ml (0.1 ml steps); 0.1–50,000.0 µg (0.1 µg steps); 0.1–5,000.0 mg (0.1 mg steps)
• Volume limit setting: 0.1–1,000.0 ml
• Total volume display range: 0.0–1,000.0 ml
• Infusion accuracy: Mechanical ±1%, including syringe ±3%
• Occlusion detection levels: High, Middle, Low, Very Low
• Alarms: High Priority, Low Priority, Information Signals
• Dimensions: 320 x 90 x 160 mm
• Weight: approx. 2.0 kg
• Battery: internal rechargeable battery providing continued operation during power outage (up to approx. 12 hours when fully charged)
