Anesthesia syringe pump TOP-5520

1-wayPCATIVA

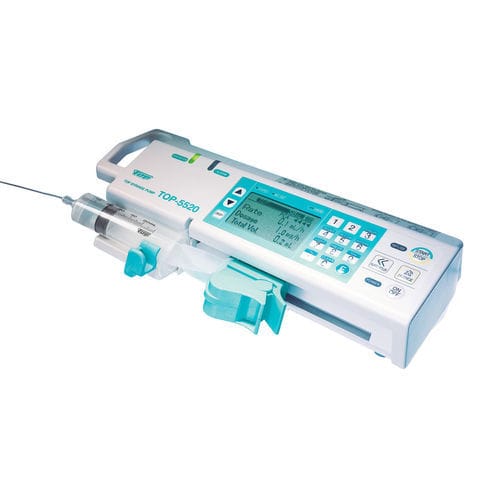

TOP-5520 Syringe Pump
The TOP-5520 Syringe Pump delivers continuous, rapid infusion with minimal residual volume to support TIVA (Total Intravenous Anesthesia) and PCA (Patient Controlled Analgesia). It is also suitable for epidural anesthesia and routine infusion therapy.

Modes and dosing

• Continuous Flow, Bolus, TIVA and PCA modes
• In TIVA mode dosage can be set in μg/kg/min or mg/kg/h; pump auto-calculates flow rates from entered parameters
• Flow rates can be adjusted and additional boluses delivered without stopping infusion

Safety and power

• Configurable audible and visual alarms (High Priority, Low Priority, Information)
• Internal rechargeable battery: ~12 hours runtime when fully charged; optional AA alkaline batteries may extend runtime up to ~24 hours
• Key Lock, Alarm Reminder, Buzzer Setting, Power Supply Switch Alarm

Special functions include

• Auto Power Off
• Alarm Reminder
• Buzzer Setting
• Power Supply Switch Alarm
• History Function and PCA History Printout
• Standby, KVO (Keep Vein Open)
• Key Lock
• External Communication Function
• Syringe Brand Limit Function
• Infusion Mode Limit Function
• Dose Unit Limit Function
• Volume Limit Display Switching Function
• Battery Refresh
• Maintenance Timer
• Flow Rate Upper Limit Value Setting
• User Syringe Registration Function

Technical specifications

• Compatible syringes: 10, 20, 30, 50 ml (various brands)
• Flow rate range (TIVA mode): 0.1 – 300 ml/h to 0.1 – 1,200 ml/h depending on syringe size
• Flow rate range (PCA mode): 0.1 – 150 ml/h for each syringe size
• Agent range: 0.1 – 1,000.0 mg
• Solution range: 0.1 – 1,000.0 ml
• Weight range (for patient calculations): 0.1 – 300.0 kg
• Dosage range TIVA mode: 0.01 – 99.99 μg/kg/min; 0.01 – 99.99 mg/kg/h
• Dosage range PCA mode: 0.1 – 99,999.9 μg; 0.1 – 9,999.9 mg/h
• Volume limit: 0.1 to 1,000.0 ml
• Total volume display range: 0.1 to 1,000.0 ml
• Infusion accuracy: Mechanical ±1%, including syringe ±3%
• Purge and bolus flow rate (TIVA): approx. 300 ml/h to 1,200 ml/h depending on syringe size
• Bolus volume: 0.1 – 50.0 ml (0.1 ml steps); 0.1 – 50,000.0 μg (0.1 μg steps); 0.1 – 5,000.0 mg (0.1 mg steps)
• Bolus accuracy: ±3% (±0.1 ml at 0.1 to 3.3 ml setting)
• Occlusion detection pressure: High, Middle, Low, Very Low
• Lockout (PCA): 1 – 120 minutes (1-minute steps)
• Bolus limit settings: 1 – 24 hours (1-hour steps); 1 – 10 times; ml: 0.1 – 50.0 ml; μg: 0.1 – 50,000.0 μg; mg: 0.1 – 5,000.0 mg
• Alarms: High Priority, Low Priority and Information Signals
• Dimensions: 320 x 90 x 160 mm
• Weight: 2.0 kg
