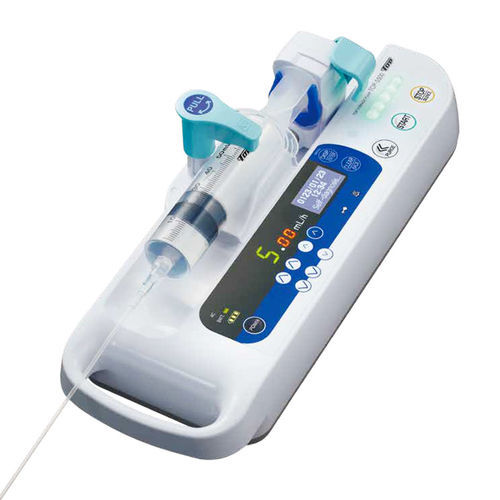

Enteral nutrition syringe pump TOP-S500

anesthesiachemotherapyoncology

Overview
The TOP-S500 syringe pump by TOP Corporation is a lightweight, compact infusion pump designed for simple, sequential operation and continuous administration of small-volume medical fluids. The user interface guides operators through clear left-to-right steps for straightforward control.

Use
Intended for clinical continuous infusion of small-volume liquids such as anesthetics. Also suitable for blood transfusion and administration of nutritional supplements, chemotherapeutic and anticancer agents, labor-inducing drugs and anticoagulants. Depending on settings, an additional bolus can be delivered manually or as a preset fixed volume during infusion.

Safety
Events are indicated by audible and visible alarms; red indicators localize the cause to support rapid response. Internal batteries provide up to 10 hours of operation during power outages or transport.

Special features

• Auto Power Off
• Repeated Alarm
• Standby
• Key-lock
• KVO (Keep Vein Open)
• Change Rate
• Bolus
• Maintenance Timer
• Auto Brightness Switching
• Change Syringe Brand
• Second Decimal Space Display option
• Operation, Standby and Alarm Tone Settings
• Occlusion Setting
• Operation History
• Add Purging Volume Setting
• Forced Priming
• Volume Limit Setting
• Change Rate Enabled
• Bolus Enabled
• KVO Flow Rate Setting
• Syringe Brand Setting
• Flow Rate Soft Limit and Hard Limit Setting
• Lighting Check
• Flow Check
• Occlusion Check
• Shock Detection
• User Syringe Registration
• Send History Data
• Delete History Data
• External Communications

Specifications

• Compatible Syringes: 5, 10, 20, 30, 50 ml (various brands)
• Flow Rate Settings: 0.10 – 99.99 ml/h (0.01 ml/h steps) and 100 – 1,200 ml/h (1 ml/h steps) depending on syringe size
• Volume Limit: No setting, or 0.1 to 999.9 ml (0.1 ml steps)
• Total Volume: 0.0 to 999.9 ml (0.1 ml steps)
• Infusion Accuracy: Mechanical ±1%, including syringe ±3%
• Purge and Bolus Flow Rate: 150 – 1,200 ml/h depending on syringe size
• Bolus Volume: 0.1 – 50.0 ml (0.1 ml steps) depending on syringe size
• Bolus Accuracy: ±3% (±0.1 ml at 0.1 to 3.3 ml setting)
• Occlusion Detection Pressure: High, Medium, Low, Special Low
• Alarms: High Priority, Low Priority, Information Signals
• Dimensions and Weight: 360 x 110 x 135 mm, 1.3 kg
