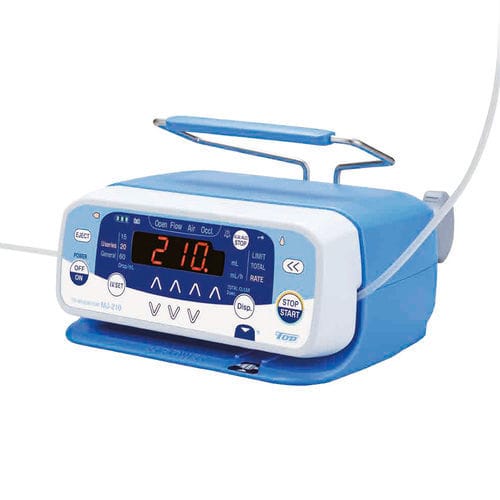

Multi-function infusion pump MJ-210

volumetricfor drug deliveryadult

Overview
TOP Infusion Pump MJ-210 is an electric infusion device for controlled administration of infusion fluids in clinical settings. The pump supports two operating modes — U-Series mode for use with the dedicated TOP Solution Infusion Set U-Series, and General mode compatible with a range of standard infusion sets. The front slot guides and aligns the set for automatic connection to reduce setup time. The internal battery provides up to approx. 4 hours of operation when fully charged.

Modes and compatibility

• U-Series mode: Optimised control using TOP Solution Infusion Set U-Series (recommended).
• General mode: Compatible with various commercial infusion sets.
• Automatic infusion set attaching and setting functions simplify loading and reduce user errors.

Key technical specifications

• Model: MJ-210
• Flow rate U-Series mode: 0.1 ml/h – 99.9 ml/h (0.1 ml/h increments); 100 ml/h – 1,200 ml/h (1 ml/h increments)
• Flow rate General mode (drops/ml): 15 drops/ml: 1 – 400 ml/h; 20 drops/ml: 1 – 360 ml/h; 60 drops/ml: 1 – 150 ml/h (1 ml/h increments)
• Purge flow rate: max. flow rate in infusion mode
• KVO (Keep Vein Open): 0.1 – 5.00 ml/h
• Volume limit range: 0.1 – 9,999.9 ml (0.1 ml increments)
• Total volume range: 0.0 – 9,999.9 ml (0.1 ml increments)
• Infusion accuracy: ±5% (U-Series, IEC60601-2-24, clinical situations); ±10% (General, IEC60601-2-24, clinical situations, water or saline)
• Occlusion detection (downstream) U-Series: High 120±30 kPa; Medium 90±30 kPa; Low 60±30 kPa; Lowest 30±20 kPa
• Air-in-line detection: sensitivity selectable (High / Medium / Low)
• Dimensions (W×D×H): 180 × 113 × 202 mm; Weight: approx. 1.8 kg (including clamp and battery)

Safety and alarms

• Audible and visible alarms with priority levels (high, low, information)
• Occlusion detection with selectable sensitivity levels
• Air-in-line detection with selectable sensitivity
• Repeat alarm and buzzer setting options; power supply switch notice

Special functions

• Automatic infusion set attaching function
• Infusion set setting function
• Anti-bolus function
• KVO (Keep Vein Open) function
• Standby and auto power off
• Repeat alarm and buzzer configuration
• Key-lock function
• Maintenance timer and history function
• Alarm setting confirmation function

Power and physical details

• Internal rechargeable battery: up to approx. 4 hours runtime when fully charged
• Power supply: mains with battery backup
• Compact footprint and lightweight design for bedside use and transport
