Veterinary dental micromotor Liberty

dentalfor equineselectric

Overview
The Equus Liberty motor is a wireless dental motor for equine dentistry, providing cordless operation, fingertip controls and stepwise speed regulation for veterinarians and equine dental specialists. It features an electronic clutch and DSP-based digital management for controlled low-speed work.

Key attributes

• compact
• wireless (battery powered)
• quiet operation
• high-efficiency motor

Motor

• motor control screen for settings and operation
• electric motor with high efficiency and very low noise, optimized for low-speed performance
• bidirectional rotation with start/stop and direction selection
• stepwise variation of running speed
• digital management with DSP microprocessor
• electronic clutch to protect the oral cavity and extend tool life
• integrated in an aluminium shock-resistant housing for heat evacuation
• coupling options: EDH, Foredom, HDE
• maximum speed: 10,000 RPM

Battery

• compact battery with gauge displayed on the motor screen
• battery options: VM2.5A (40V, 2.5Ah) or VM4 (40V, 4Ah)
• electronic fast charger
• product supplied with two batteries by default
• option to use an external power supply in place of the battery
• charger not available for 110V

Support / Belt

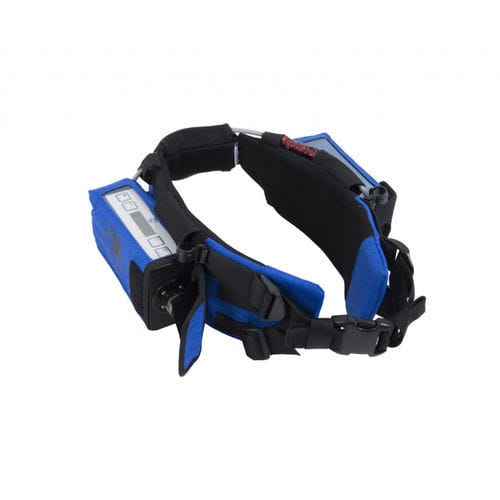

The motor and battery block are placed in a symmetrical belt made of mesh and Cordura fabric; the belt is comfortable, rainproof and machine washable and provides direct access to motor setting buttons. Optional shoulder braces are available to redistribute weight.

Standard pack (standard configuration)

• one motor with electronic clutch and chosen coupling (EDH, Foredom or HDE)
• two batteries
• one battery base
• one charger
• one belt
• one downloadable application

Bluetooth / Scalability
The base motor is not supplied with Bluetooth but is upgradable to the Equus Liberty Connect Bluetooth variant in the future.

Customization
Engraving/personalization of the motor is available on order.

Technical specifications

• Reference: EL-ELCG03
• Maximum speed: 10,000 RPM
• Digital management: DSP microprocessor
• Electronic clutch
• Electronically controlled burr power and speed with energy optimization
• Bidirectional operation (both rotation directions)
• Stepwise speed variation
• Aluminium shock-resistant housing for heat evacuation
• Coupling options: EDH, Foredom, HDE
• Battery options: VM2.5A (40V, 2.5Ah) or VM4 (40V, 4Ah); delivered with two batteries
• Charger: electronic fast charge (not available for 110V)
• Weight (product metadata): 8 kg
