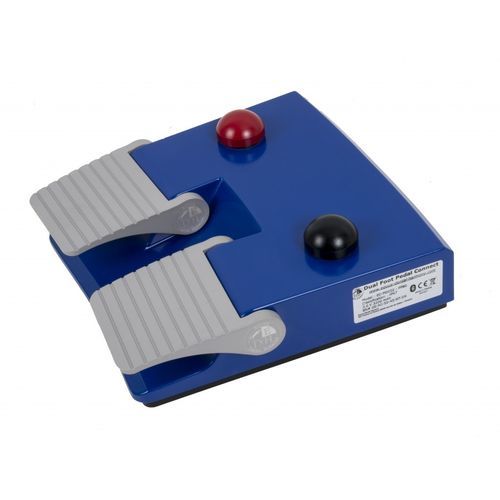

Veterinary dentistry footswitch EC-PDC02

dentalelectricdouble

Overview
Wireless double foot pedal equipped with Bluetooth for controlling all devices in the Connect range and a wired motor. The pedal integrates a dual progressive drive and two assignable command buttons for precision control in clinical environments.

Main functions

• Right / left motor rotation (direction reversal)
• Progressive speed control via dual pedals
• Switch on / switch off the water
• Switch on / switch off the suction
• Trigger photos and videos on endoscope Tele pack Vet Storz
• Additional configurable commands (assignable buttons)

Controlled equipment / Compatibility

• Speed control of the Equus Liberty Connect motor
• Control of the Equus Jet Connect pump
• Control of the Equus Dimmer Box Connect
• Configurable options: motor rotation reversal, synchronized start/stop of water pump with motor, suction on/off, endoscope trigger

Use cases
Designed for precision dental and veterinary procedures: incisors, diastema, drilling, caries removal, sinus work, flushing and water cooling. Provides hands-free control to streamline operative workflow.

Configuration & ergonomics
Settings are adjustable via the Android application (smartphone/tablet) and via the pedal ON button. Buttons are assignable to preferred functions for tailored ergonomics and quick access during procedures.

Operation & maintenance

• Automatic standby after 40 minutes of inactivity
• Recharge on dedicated base; charging time approximately 4 hours
• Battery life approximately 2 weeks (varies with use)
• Waterproof design; washable for easy clinical cleaning

Range / Origin
Connect range
Made in France

Technical specifications

• Reference: EC-PDC02
• Product type: Wireless double foot pedal with dual progressive drive and two assignable buttons
• Connectivity: Bluetooth (controls Connect range devices and wired motor)
• Battery life: ~2 weeks (depending on use)
• Charging time: ~4 hours (recharges on a base)
• Auto power-off: 40 minutes of inactivity
• Water resistance: Waterproof, washable
• Compatible controls: motor speed, pump, dimmer box, motor rotation reversal, water pump start/stop, suction on/off, endoscope photo/video trigger
• Range: Connect
• Made in: France
• Product weight (indicative): 2.0 kg
