Veterinary dental micromotor control unit EC-EDB02

electric

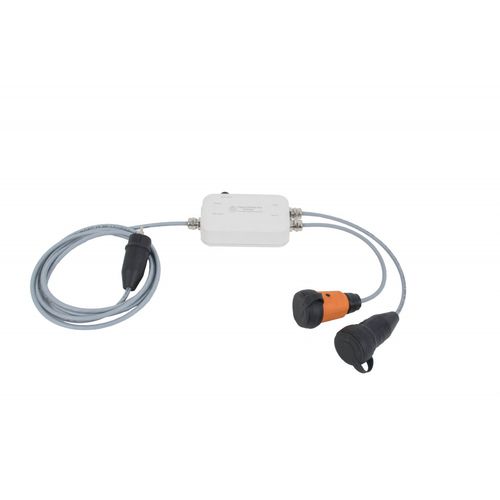

The Equus Dimmer Box Connect is a connected management box.

It allows you, thanks to its Bluetooth, to use our single or dual wireless pedals, with a wired motor and/or suction with time delay, and/or Tele Pack Vet Storz endoscope.

It's compatible with a 230V motor, Equus Dental Harmony or competitors.

The Equus Dimmer Box Connect is a management box which, thanks to Bluetooth, allows you to use our single or dual wireless pedals, with a wired motor and/or suction, and/or Tele Pack Vet Storz endoscope.

The Equus Dimmer Box Connect is compatible with a 230V motor, Equus Dental Harmony or competitors.

The Dimmer Box communicates with all the products in the Connect range.

Example: paired with an Equus Jet Connect, the pedal activates the motor and the pump at the same time.

The settings are made directly on the box or through the application.



The motor output (600 watt maximum) is a variable output that allows you to regulate the motor speed.

The suction output (1500 watt) can be parameterised with a delay, this allows you to continue to suck for 3 or 4 seconds after stopping the motor. You can also use a water pump if you wish.

The auxiliary contact output allows you to control endoscopy photos and videos. Currently Storz Tele Pack Vet.



Case size: 15 X 10.5 X 4.5 cm

Power cable length: 3m

Cable storz length : 3m
