Veterinary dentistry footswitch FP-FP20

dentalfor dental unitselectric

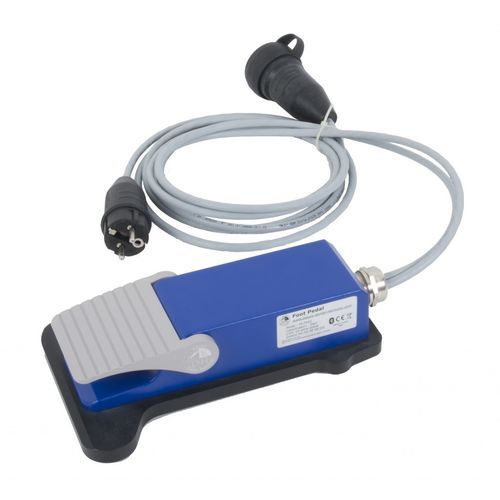

The Wired Equus Foot Pedal is an electronic control pedal (dimmer) designed to regulate 230V motors used in equine dentistry, allowing smooth adjustment of motor intensity. It supports configuration for most dental and veterinary motors up to 600 W and can be operated and tuned via an Android application for convenient remote adjustment.

Preconfigured motors

• Equus 220V motor — 29,000 RPM
• Suhner 300W motor — 28,000 RPM
• Kress Dental Vet 530W motor — 29,000 RPM
• AMB 530W motor — 29,000 RPM

Application and control

• Android app allows selecting the motor model and modifying the response curve remotely from a tablet or smartphone for precise control

Cabling

• Power cable length: 3 m
• Motor connection cable length: 1.5 m

Technical specifications

• Reference: FP-FP20
• Voltage: 230 V (for 230V motors)
• Compatible motor power: up to 600 W
• Preconfigured motor models: Equus 220V (29,000 RPM), Suhner 300W (28,000 RPM), Kress Dental Vet 530W (29,000 RPM), AMB 530W (29,000 RPM)
• Power cable length: 3 m
• Motor connection cable length: 1.5 m
• Weight: 2.1 kg
• Made in France
