Hospital trolley B36

medicationmedicine distributionstainless steel

Product overview

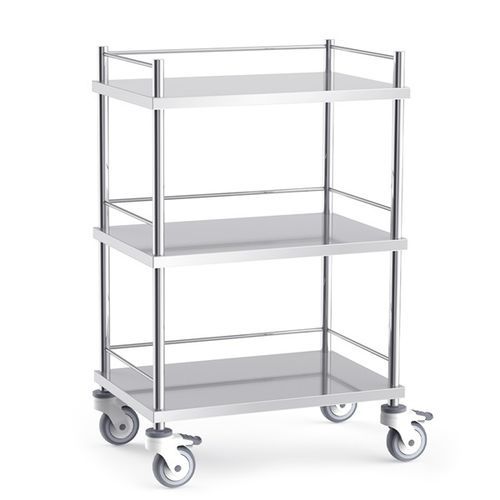

B36 layered medication dispensing trolley is designed for hospital sterile compounding centers, outpatient dispensing and ward medication preparation. It features a through-welded integral structure for high rigidity and stable transfer during frequent movement; each tier has three-side guardrails to prevent bottles, boxes and consumables from slipping. The trolley is manufactured from standard 304 stainless steel with welded joints free of sanitary dead angles for easy cleaning and disinfection. Fitted with long-life silent casters for flexible steering and low pushing effort, it is suitable as a dedicated device for medication preparation and nursing material transport in medical institutions.

Main specifications
Model: B36 layered medication dispensing trolley
Dimensions: 600×400×930 mm
Top surface height from floor: 850 mm
Overall material: Standard 304 stainless steel
Frame tubing: Φ25 mm thickened stainless round tube, wall thickness ≥1.0 mm
Top plate: 0.8 mm thickened stainless steel top plate, single-layer rated load ≥50 KG
Guardrail: three-side Φ12.7 mm stainless round tube guardrail per tier
Casters: Φ100 mm dual-brake dual-direction medical silent rubber casters
Process: full weld composite welding + precision polishing
Assembly: factory pre-assembled, ready to use out of the box
Customization: full-dimension customization of overall L×W×H, tier spacing, tier count, guardrail and accessories

Key advantages

• Standard 304 thickened stainless steel frame resists corrosion and deformation. Vertical posts use Φ25 mm thickened round tubes with wall thickness ≥1.0 mm to withstand impact and long-term full-load use.
• Full-weld composite precision workmanship with solid, full welds. All connection nodes are fully welded using 304-specific welding wire, followed by precision polishing to remove burrs and sharp edges.
• Three reinforced storage tiers with three-side guardrails for enhanced safety. Each tier uses 0.8 mm thick stainless top plate with rated load ≥50 KG; reinforced support tubes underneath maintain flatness under long-term load; Φ12.7 mm guardrails on three sides effectively prevent bottles and consumables from sliding off.
• Through-welded integral structure for torsional stability. The through-style integral welding allows Φ25 mm main tubes to pass through all tier plates and be welded internally, resulting in a rigid body suitable for corridors, elevators and varied transport scenarios.
• Φ100 mm dual-brake dual-direction silent casters for durable, smooth rolling. Medical-grade silent rubber casters with factory warranty; dual-brake + dual-direction combination adapts to narrow corridors and enables flexible steering; single-wheel rated load ≥50 kg.
• Factory pre-assembled for immediate clinical deployment. Frame, shelves, guardrails and casters are pre-installed and quality-checked for direct use without on-site welding or assembly.
• Comprehensive customization to match departmental layouts. Dimensions, tier spacing and number, guardrail styles and accessories (side push handles, drawers, label slots, partial/full panels) can be customized.
• Strict raw material testing and quality control to ensure medical safety. Complete test reports for 304 plates and tubes available; raw materials undergo composition analysis and salt spray corrosion testing; full-process quality control from incoming materials to finished product.

Applications
The layered medication dispensing trolley is primarily suited to hospital sterile compounding centers and covers medication sorting, finished infusion transport and consumables storage. It is widely applicable to outpatient dispensing rooms, operating rooms, nurse stations, pharmacies, laboratories, as well as community clinics, township health centers, aesthetic and rehabilitation facilities, supporting efficient tiered storage and safe transport of infusions, dressings and specimens.

Features / Specifications (Technical parameters)

• Model: B36
• Overall dimensions: 600×400×930 mm
• Top surface height from floor: 850 mm
• Number of tiers: three (customizable)
• Top plate material: 0.8 mm thickened 304 stainless steel (single-layer rated load ≥50 KG)
• Overall material: standard 304 stainless steel
• Frame tubing: Φ25 mm stainless round tube, wall thickness ≥1.0 mm
• Guardrail: three-side Φ12.7 mm stainless guardrail per tier
• Casters: Φ100 mm medical silent rubber casters, dual-brake dual-direction (factory warranty)
• Process: through-type full-weld integrated structure + precision polishing (no burrs, no dead corners)
• Assembly: factory pre-assembled, ready to use
• Customizable items: overall dimensions, tier spacing, tier count, guardrail form, accessories (handles, drawers, tray slots)
