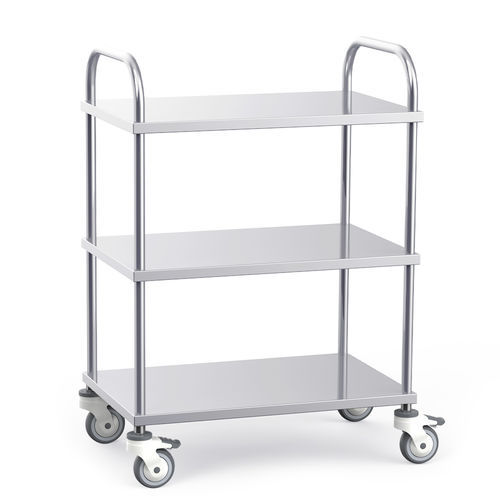

Operating room trolley B35 PIVAS

hospitalfor clean roomstransfer

Product Name
B35 PIVAS transfer trolley

Core Advantages

• Integrally welded from 304 stainless steel with smooth surfaces free of dead corners for easy disinfection
• Three flat large shelves offering ample space for infusion trays and supplies
• Dual ergonomic curved handles for comfortable pushing
• Silent casters with 5-year warranty enabling flexible movement in clean rooms and wards
• Suitable for full-process material transport in PIVAS, operating rooms and CSSD

Key Specifications

• Material: National standard 304 stainless steel
• Frame: Φ25mm thickened round tube, wall thickness ≥1.0mm
• Shelves: Thickened stainless steel flat plates, 50kg load per tier, 3 tiers total
• Handles: Integrated curved push handles on both sides
• Casters: Φ100mm medical silent casters with dual brake & dual directional design, ≥50kg single wheel load
• Craft: Full welding with overall polishing
• Assembly: Pre-assembled at factory, ready to use
• Customization: Full customization on overall size, layer spacing, tiers, guardrails and accessories
• Certification: Complete material test reports available for 304 stainless steel

Dimensions
Overall: 700×450×970mm
Top shelf height from ground: 850mm

Application Scenarios
Pharmacy intravenous admixture rooms for drug sorting, finished infusion delivery and waste recycling; applicable to operating rooms, CSSD, nurse stations, labs, pharmacies, community clinics, medical aesthetics and rehabilitation centers for layered transport of infusion drugs, medical consumables, surgical instruments and lab specimens.

Selling Point
Integrated 304 stainless steel structure, high-load three-tier shelves, ergonomic dual handles, silent brake casters, no sanitation dead corners, fully customizable.

Characteristics / Technical specifications

• Material: 304 stainless steel (national standard)
• Frame tube: Φ25mm, wall thickness ≥1.0mm
• Shelves: 3 tiers, each rated 50kg
• Casters: Φ100mm medical silent casters, dual brake & dual directional, ≥50kg per wheel
• Overall dimensions: 700×450×970mm
• Top shelf height: 850mm
• Finish: Full welding with overall polishing
• Assembly: Pre-assembled
• Customization options: overall size, layer spacing, number of tiers, guardrails, accessories
• Certification: Material test reports for 304 stainless steel available
