Sterilization storage rack D10

on castersstainless steel

Product

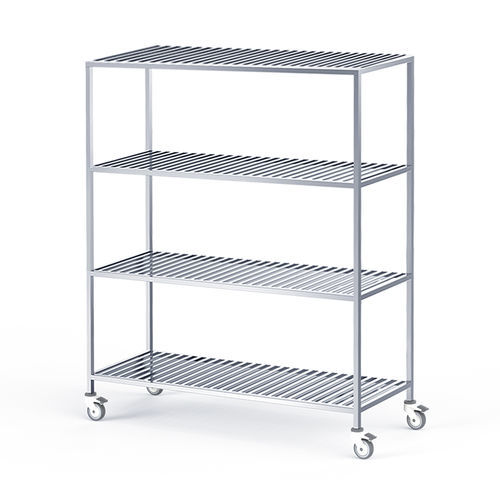

D10 stainless steel instrument rack is engineered for operating rooms and CSSD. Constructed with 25 mm thickened stainless steel square tubing and precision welding, the rack withstands repeated medical disinfection. Four integrated hollow-grid shelves provide rapid water drainage for sterilized instruments. Each tier offers 480 mm clearance to accommodate large surgical trays; 200 mm ground clearance facilitates floor cleaning. The unit is supplied with 4-inch medical silent full-lock casters and supports full-size customization to hospital requirements.

Core Advantages

• Designed specifically for operating rooms and CSSD
• 25 mm thickened stainless steel square tube frame for repeated disinfection resistance
• Four integrated hollow-grid shelves for fast drainage
• 480 mm layer clearance suitable for large surgical trays
• 200 mm ground clearance for easier floor cleaning
• 4-inch lockable medical silent casters
• Seamless/full & spot welded frame meeting hospital infection control standards
• Full-size customization available

Key Specifications

• Material: Optional 201 / 304 stainless steel
• Frame: 25 mm thickened square tube, wall thickness 1.0 mm
• Shelves: Integrated hollow-grid structure, total 4 tiers
• Layer height between tiers: 480 mm
• Ground clearance: 200 mm
• Casters: 4-inch medical silent full-lock casters
• Craft: Combined full and spot welding with fine polishing
• Assembly: Pre-assembled, ready to use out of carton
• Customization: Adjustable size, number of layers, spacing, casters and guardrails

Dimensions
Overall: 1500×750×1750 mm

Application Scenarios
Suitable for operating rooms, CSSD, instrument washing areas and sterile storage zones. Intended for general hospitals, surgical clinics, plastic surgery centers and rehabilitation facilities to store, transfer and classify surgical trays and large instruments.

Selling Point

• Hollow drainage grid shelves
• Ample 480 mm layer clearance
• Easy-to-clean underframe with 200 mm ground clearance
• Corrosion-resistant stainless steel construction
• Lockable silent medical casters
• Fully customizable to facility requirements

Technical specifications

• Model: D10
• Material: 201 / 304 stainless steel (optional)
• Frame: 25 mm thickened square tube, wall thickness 1.0 mm
• Shelves: 4-tier integrated hollow-grid
• Layer height between tiers: 480 mm
• Ground clearance: 200 mm
• Casters: 4-inch medical silent full-lock casters
• Craft: Combined full & spot welding with fine polishing
• Assembly: Pre-assembled
• Dimensions: 1500×750×1750 mm
• Customization: Adjustable size, layers, spacing, casters and guardrails
