Hospital trolley B30

for consumablesfor medicinetransport

Product Overview

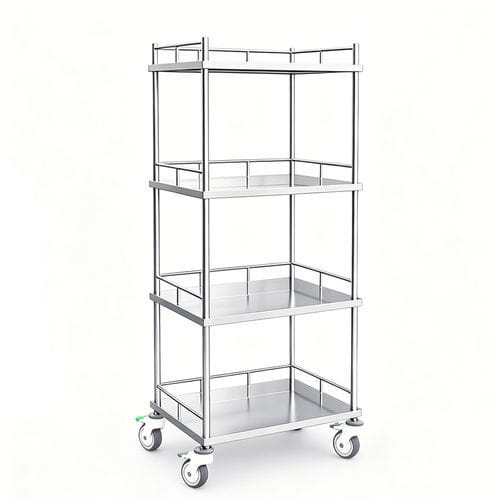

B30 Medical Basket Trolley is a lightweight stainless-steel supply trolley designed for classified transport and temporary storage of medical instruments, dressings, medicines and other supplies. It features a penetrating welded structure, four load-bearing tiers with three-sided guardrails and medical-grade silent casters. The trolley is delivered pre-assembled and allows full-dimension customization to meet clinical logistics needs.

Core Advantages

• Penetrating welded frame for high rigidity and structural stability
• Four load-bearing tiers with three-sided guardrails to prevent item fall
• Lightweight stainless-steel construction for easy maneuvering
• Medical-grade silent casters with dual-brake and long warranty for stable movement
• Pre-assembled supply; full-dimension customization available

Key Specifications

• Material: Thickened stainless steel tubing and sheet, corrosion-resistant
• Frame: Φ25mm stainless steel round tube, wall thickness ≥1.0mm
• Shelves: 0.81mm thick stainless steel sheet, 40 kg load per tier
• Guardrails: Φ12.7mm stainless steel round tube on three sides
• Casters: Φ100mm medical-grade dual-brake & dual-directional silent casters; 5-year warranty; ≥50 kg load per wheel
• Structure: Penetrating welding design for high rigidity
• Net Weight: 13.5 kg (lightweight for easy pushing)
• Assembly: Pre-assembled, ready-to-use
• Customization: Full-dimension customization available
• Packaging: Reinforced carton with multi-layer cushioning

Dimensions
Overall: 650×450×1550 mm

Application Scenarios
Sterile supply centers, pharmacy intravenous admixture rooms, operating rooms, pharmacies and ward supply rooms. Suitable for classified transport and temporary storage of medical instruments, dressings, medicines and other supplies.

Selling Points

• Four-tier storage design with penetrating welded structure for structural stability
• Three-sided guardrails and heavy-duty silent casters for safe, quiet operation
• Lightweight construction combined with 40 kg load capacity per tier
• Full-dimension customization to adapt to specific medical logistics requirements

Technical specifications

• Material: Thickened stainless steel tubing and sheet, corrosion-resistant
• Frame diameter: Φ25 mm stainless steel round tube
• Frame wall thickness: ≥1.0 mm
• Shelf thickness: 0.81 mm stainless steel sheet
• Load per shelf: 40 kg
• Guardrail diameter: Φ12.7 mm stainless steel round tube (three-sided)
• Caster diameter: Φ100 mm medical-grade dual-brake & dual-directional silent casters
• Caster load capacity: ≥50 kg per wheel
• Caster warranty: 5-year warranty (as specified)
• Structure type: Penetrating welding design
• Net weight: 13.5 kg
• Assembly: Pre-assembled
• Customization: Full-dimension customization available
• Packaging: Reinforced carton with multi-layer cushioning
• Overall dimensions: 650 × 450 × 1550 mm
