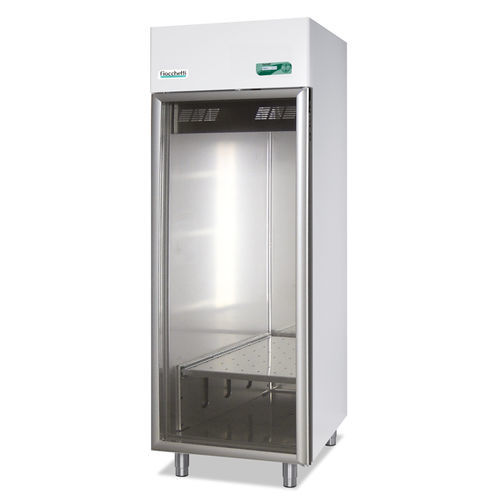

Chromatography refrigerator CROMATOGRAFIA 700 ECT-F

upright1-doorwith glass door

Overview
Refrigerator designed for chromatography applications with glass door and adjustable temperature range +2 to +15°C. Net capacity 620 L (21.89 cu ft). Suitable for laboratories, industrial use and research. Product code CRM0701.

General features

• Internal finish in AISI 304 stainless steel with perforated stainless-steel sliding shelf for high load capacity
• 2 internal power outlets and 35 mm cable passthrough included
• Tempered glass door compliant with IEC 61010-1, low-emissivity, anti-fog; anodized aluminium profiles
• Full-length ergonomic handle, magnetic gasket on four sides, self-closing with 90° hold-open; reversible door opening

Structure and refrigeration

• Internal dimensions: 60 x 68 x 150 cm
• Gross capacity: 700 L (24.72 cu ft)
• Net capacity: 620 L (21.89 cu ft)
• Insulation: injected high-density polyurethane (43 kg/m3), CFC-free, water-blown
• Insulation thickness: 75 mm
• Single-shell structure with AISI 304 stainless steel interior and white plastified antibacterial-treated steel exterior; rounded corners and sump base
• 4 adjustable feet for stability
• Full-height LED internal lighting
• Ventilated professional refrigeration
• Adaptive automatic defrost with evaporation of condensate

ECT-F electronic controller
Temperature display and setpoint with 0.1°C resolution, accuracy ±0.3°C. 16-character backlit alphanumeric LCD, 4-button membrane keypad, configurable in 5 languages. Four display modes. Password protection for power on/off and setpoint change. Temperature alarms (three types) and event log (12 events).

Main technical data

• Refrigerant: R290
• Consumption: 1 kWh/24h
• Power / Current: 0.12 kW / 0.7 A
• Start-up inrush current: 2.5 A
• Noise level: 50 dBA
• Heat emission (EN 12900): 41 W
• 1 perforated stainless-steel sliding shelf included, load capacity 100 kg (53.5 x 58.5 cm)
• 2 internal power outlets included
• 1 cable passthrough Ø 35 mm with cap included
• Operating temperature range: +2 / +15°C
• Capacity (net): 620 L (21.89 cu ft)
• External dimensions (W x D x H): 75 x 84.5 x 210 cm
• Controller type: ECT-F

Accessories available on request

• Lock with key
• DMLP DIGITAL MONITOR
• DMLP PRINTER
• Shelf for models 700–1500
• Stainless-steel shelf for models 700–1500
• Sliding wire drawer on guides for models 700–1500
• Plexiglass front riser for drawer
• Sliding wire basket
• Wheel kit (2 with brake) for model 700
• Internal power outlet
• Cable passthrough Ø 35 mm with cap
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with potential-free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Technical specifications

• Model: CROMATOGRAFIA 700 ECT-F
• Brand: Fiocchetti
• Product code: CRM0701
• Adjustable temperature: +2 / +15°C (resolution 0.1°C, accuracy ±0.3°C)
• Net capacity: 620 L
• Internal dimensions: 60 x 68 x 150 cm
• External dimensions: 75 x 84.5 x 210 cm
• Insulation: polyurethane 43 kg/m3, thickness 75 mm
• Refrigerant: R290
• Consumption: 1 kWh/24h
• Noise level: 50 dBA
• Included: perforated stainless-steel sliding shelf (53.5 x 58.5 cm) load 100 kg, 2 internal outlets, cable passthrough Ø 35 mm
• Control: ECT-F – 16-character backlit LCD, 4-button keypad, alarms and event log
