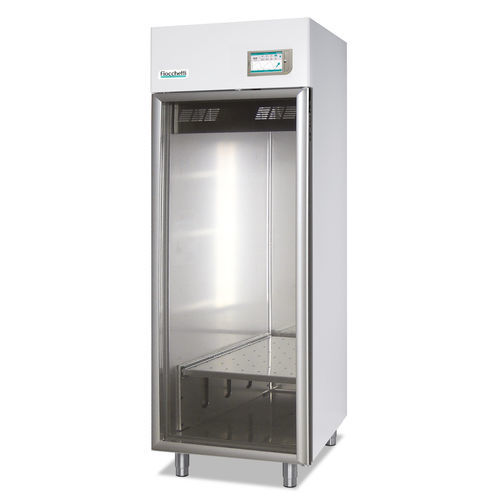

Laboratory refrigerator CROMATOGRAFIA 700 TOUCH

for chromatographycabinet1-door

Overview
Large-volume chromatography refrigerator with tempered glass door and temperature range +2°C / +15°C, designed for laboratories, industrial use and scientific research. Internal stainless steel construction and perforated stainless-steel shelf optimized for chromatographic equipment.

Key data

• Temperature range: +2 / +15°C
• Nominal capacity: 700 L (24.72 cu ft)
• Net capacity: 620 L (21.89 cu ft)
• External dimensions (WxDxH): 75 x 84.5 x 210 cm
• Electronic controller: TOUCH (7" full touch screen)

Chromatography refrigerator — Description

• Series: medical/ laboratory refrigeration, functional design for controlled storage of chromatography instruments and consumables.
• Inner material: stainless steel 18/10 AISI 304 with rounded internal corners.
• Perforated stainless-steel sliding shelf included; load capacity 100 kg.
• Included: 2 internal sockets and one cable access port Ø35 mm with stopper.
• Door: tempered, anti-fog, low-emissivity glass with anodized aluminium profiles; full-length ergonomic handle; magnetic gasket; reversible opening; door stop at 90° with automatic return spring.

Structure and refrigeration

• Inner dimensions: 60 x 68 x 150 cm
• Insulation: injected PUF, high density 43 kg/m3, water-foam based, CFC-free; thickness 75 mm.
• Structure: monocoque exterior in white plastified steel with antibacterial film; inner chamber in AISI 304 stainless steel.
• 4 height-adjustable feet for stability.
• Interior lighting: full-height adjustable LED.
• Refrigeration: professional ventilated system; defrost: adaptive automatic with condensate vaporization.
• Night & Day function to reduce power consumption.

Controller

• Microprocessor controller with 7" full touch screen, 0.1°C resolution, ±0.3°C accuracy.
• Standard: temperature and alarm recording; multi-trace real-time graph; current temperature and editable set-point; editable alarm limits; energy consumption monitoring.
• Controller door with slots for SD card (data history), USB port (download/update) and SIM card (GSM module optional).
• Integrated web server for LAN (RJ45) and MODBUS TCP/IP; anti-freeze and anti-overheat safety; dry contact for remote alarm.
• Optional accessories: electronic lock, power-failure alarm, DMLP TOUCH module for independent recording, GSM/Wi‑Fi modules, external terminal board, local/cloud monitoring systems.
• Acoustic and visual alarms, silenceable, with automatic recording.

Technical data

• Refrigerant: R290
• Energy consumption: 1 kWh/24h
• Power absorption / Current: 0.12 kW / 0.7 A
• Inrush current: 2.5 A
• Noise level: 50 dBA
• Heat rejection (EN 12900): 41 W
• No. 1 sliding perforated stainless-steel shelf included (dimensions 53.5 x 58.5 cm)
• No. 2 internal sockets; No. 1 access port Ø35 mm with stopper

Specifications

• Product type: large-volume chromatography laboratory/medical refrigerator, glass door.
• Applications: laboratories, industrial field, scientific research.
• Internal material: stainless steel 18/10 AISI 304; perforated shelving available.
• Door features: tempered anti-fog low-emissivity glass, magnetic gasket, reversible opening, automatic lock with return spring, 90° door stop.
• Controller: 7" full touch-screen with recording, SD/USB/SIM slots, LAN and MODBUS TCP/IP support; optional GSM/Wi‑Fi/DMLP modules and monitoring.
• Insulation: injected PUF 43 kg/m3, 75 mm thick, CFC-free.
• Refrigeration gas: R290; ventilated professional refrigeration; adaptive automatic defrost.
• Included accessories: 1 sliding perforated shelf (100 kg capacity), 2 sockets, 1 access port Ø35 mm.
