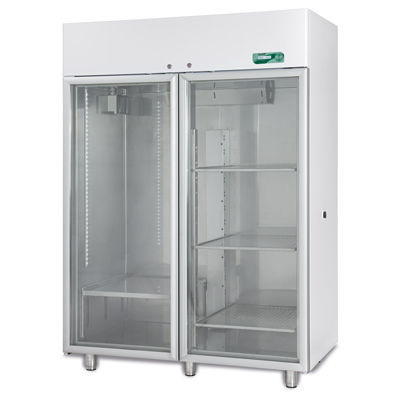

Laboratory refrigerator CROMATOGRAFIA 1500 ECT-F

for chromatographyupright2 doors

Overview
Large refrigerator designed for chromatography use with double tempered glass doors. Temperature adjustable from +2 to +15°C. Intended for laboratories, industrial applications and scientific research. Interior in AISI 304 18/10 stainless steel; perforated stainless shelves for chromatography instruments. Includes 2 internal power sockets and a 35 mm cable pass-through.

Main features

• Temperature range: +2 / +15°C
• Nominal capacity: 1500 L (52.97 cu ft)
• Net capacity: 1355 L (48.87 cu ft)
• External dimensions (W×D×H): 144 × 83 × 207 cm
• Internal dimensions (W×D×H): 130 × 67 × 150 cm
• Electronic controller type: ECT-F

Structure and refrigeration
Monocoque construction with interior in AISI 304 18/10 stainless steel and exterior in white plastified steel with certified antibacterial treatment. Rounded corners and tank-style bottom. Four height-adjustable feet. High-density injected polyurethane insulation (43 kg/m3), CFC-free, water-blown. Insulation thickness: 70 mm. Internal lighting: full-height LED. Refrigeration: professional forced-air. Defrost: adaptive automatic with condensation evaporation.

Doors and internal accessories
Doors made of tempered glass compliant with IEC 61010-1, with anti-condensation and low-emissivity glass to improve thermal performance; anodized aluminium profiles. Full-length ergonomic handle. Magnetic gasket on four sides; automatic return-spring closing and 90° door stop. Shelves included: 1 sliding perforated stainless shelf, load 100 kg (53.5 × 58.5 cm) included; 3 perforated stainless shelves included (55 × 65 cm). 2 internal power sockets included. 1 cable pass-through hole Ø35 mm with plug included.

ECT-F electronic controller
Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C. 16-character backlit alphanumeric LCD, configurable in 5 languages. Four membrane keys; user interaction via display with equipment status information. Display configurable in four reading modes. Customisable password for protection of power on/off and set-point change. Alarms: controller signals three main types of temperature alarms and records 12 events.

Electrical and performance data
Refrigerant type: R290. Consumption: 2.5 kWh/24h. Absorbed power: 0.4 kW. Nominal current: 1.8 A. Starting current: 6 A. Noise level: 55 dBA. Heat emitted (EN 12900): 125 W.

Category and product code
Category: REFRIGERATORS for CHROMATOGRAPHY (series CROMATOGRAFIA - ECT-F). Product code: CRM1501.

Accessories available on request

• Lock with key
• DMLP DIGITAL MONITOR
• DMLP PRINTER
• Perforated stainless shelf for models 700-1500
• Wheels kit (2 with brake) for model 1500
• Internal power outlet
• Cable pass-through Ø35 mm with plug
• Hole Ø15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Notes
Product designed for laboratory and research applications requiring precise temperature control and easy integration of chromatography instrumentation.

Technical specifications

• Model: CROMATOGRAFIA 1500 ECT-F
• Code: CRM1501
• Temperature range: +2 / +15°C
• Nominal capacity: 1500 L
• Net capacity: 1355 L
• Internal dimensions (W×D×H): 130 × 67 × 150 cm
• External dimensions (W×D×H): 144 × 83 × 207 cm
• Insulation type: injected polyurethane foam (43 kg/m3), thickness 70 mm
• Internal structure: AISI 304 18/10 stainless steel
• Included shelves: 1 sliding perforated stainless shelf (53.5 × 58.5 cm) load 100 kg; 3 perforated stainless shelves (55 × 65 cm)
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air
• Defrost: adaptive automatic (condensate evaporation)
• Refrigerant gas: R290
• Consumption: 2.5 kWh/24h
• Absorbed power: 0.4 kW
• Nominal current: 1.8 A
• Starting current: 6 A
• Noise: 55 dBA
• Heat emitted (EN 12900): 125 W
• Internal sockets: 2
• Cable pass-through: Ø35 mm (plug included)
• Doors: double tempered glass door, anti-condensation and low-emissivity glass
• Gasket: magnetic; automatic return-spring closing with 90° door stop
• Controller: ECT-F (16-char LCD, 0.1°C resolution, ±0.3°C accuracy, 4 membrane keys, 3 alarm types, 12-event log)
