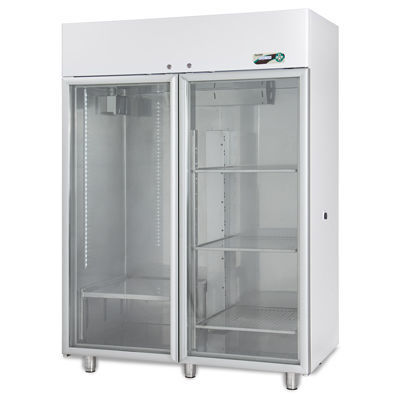

Laboratory refrigerator CROMATOGRAFIA 1500 ECT-F PLUS

for chromatographycabinetupright

Overview
Large-capacity refrigerator designed for chromatography applications. Double tempered glass door, temperature adjustable between +2 and +15°C. Intended for laboratory, industrial and scientific research use. Interior in AISI 304 18/10 stainless steel, high-load perforated stainless shelves, 2 internal power sockets and 35 mm cable pass-through port included.

Main data

• Temperature range: +2 / +15°C
• Nominal capacity: 1500 L (52.97 cu ft)
• Net capacity: 1355 L (48.87 cu ft)
• External dimensions (WxDxH): 144 x 83 x 207 cm
• Internal dimensions (WxDxH): 130 x 67 x 150 cm
• Electronics type: ECT-F PLUS

Structure and refrigeration
Monocoque construction with AISI 304 18/10 stainless steel interior and white plastified steel exterior with certified antibacterial treatment. Rounded corners and basin-shaped bottom. High-density injected polyurethane insulation (43 kg/m3), CFC-free with water-based ecological injection. Insulation thickness: 70 mm. Professional ventilated refrigeration. Adaptive automatic defrost with condensate evaporation. Full-height internal LED lighting. Four height-adjustable feet for stability.

Door and sealing
Doors made of tempered glass according to IEC 61010-1, anti-condensation low-emissivity glass for improved thermal performance with anodized aluminum profiles. Full-length ergonomic handle. Magnetic gasket on four sides. Automatic closing with return spring and 90° door stop.

Details on ECT-F PLUS controller
Temperature display and setting with 0.1°C resolution, accuracy +/- 0.3°C. 16-character backlit alphanumeric LCD, configurable in 5 languages. 4-key membrane keypad. Backup battery for power failure alarm up to 48 hours. Min/max temperature memory and recording of 16 events. Clean contact on the electronic board for alarm remote signalling. Display configurable in four reading modes. Customizable password for power on/off and set-point change protection.

Technical data

• Refrigerant type: R290
• Consumption: 2.5 kWh/24h
• Power absorbed / Current: 0.4 kW / 1.8 A
• Starting current: 6 A
• Noise level: 55 dBA
• Heat emitted (EN 12900): 125 W
• 1 sliding perforated stainless shelf included (load 100 kg) — shelf dimensions: 53.5 x 58.5 cm
• 3 perforated stainless shelves included — shelf dimensions: 55 x 65 cm
• 2 internal power sockets included
• 1 cable pass-through port Ø 35 mm with plug included

Accessories available on request

• Lock with key
• External clean contacts for ECT-F PLUS
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Graphic disk recorder
• Perforated stainless shelf for models 700-1500
• Wheel kit (2 with brake) for model 1500
• Internal power inlet
• Cable pass-through Ø 35 mm with plug
• Ø 15 mm port
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packing

Features / technical specifications

• Model: CROMATOGRAFIA 1500 ECT-F PLUS
• Series: CROMATOGRAFIA
• Net capacity: 1355 L
• Nominal capacity: 1500 L
• Temperature: adjustable +2 / +15°C, resolution 0.1°C, accuracy +/- 0.3°C
• Internal dimensions (WxDxH): 130 x 67 x 150 cm
• External dimensions (WxDxH): 144 x 83 x 207 cm
• Insulation: injected polyurethane 43 kg/m3, thickness 70 mm
• Interior: AISI 304 18/10 stainless steel
• Doors: double tempered glass, anti-condensation low-e glass
• Refrigerant: R290
• Consumption: 2.5 kWh/24h
• Power absorbed: 0.4 kW / 1.8 A (starting 6 A)
• Noise: 55 dBA
• Defrost: adaptive automatic with condensate evaporation
• Lighting: full-height LED
• Shelves included: 3 perforated stainless shelves + 1 sliding perforated stainless shelf (load 100 kg)
• Internal sockets: 2
• Cable pass-through: Ø 35 mm with plug included
• Controller: ECT-F PLUS with backup battery for alarm up to 48 h, event and min/max temp memory and clean contact for remote alarms
