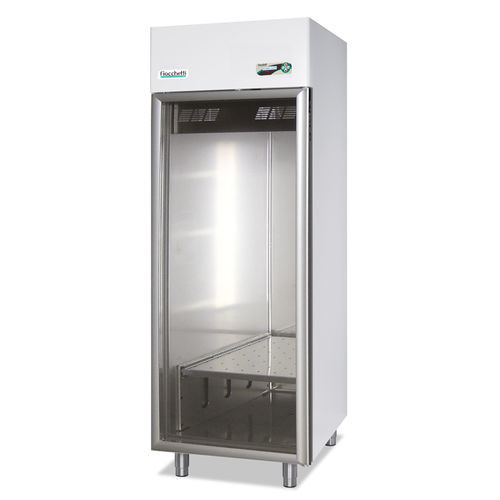

Chromatography refrigerator CROMATOGRAFIA 700 ECT-F PLUS

laboratoryfor laboratoryupright

Overview
Large-capacity refrigerator designed for chromatography applications with a tempered glass door and adjustable temperature range from +2 to +15°C. Suited for laboratories, industrial R&D and scientific facilities.

Design and interior
Functional laboratory design with AISI 304 stainless steel interior, perforated stainless steel sliding shelf sized for chromatography instruments, two internal power outlets and a 35 mm cable pass-through.

Door and locking
Tempered safety glass door compliant with IEC 61010-1, anti-fog and low-emissivity glass with anodized aluminium profiles. Full-length ergonomic handle, magnetic gasket on all four sides, automatic spring return with 90° hold-open and reversible hinge.

Structure and refrigeration

• Internal dimensions: 60 x 68 x 150 cm
• Nominal capacity: 700 L (24.72 cu ft)
• Net capacity: 620 L (21.89 cu ft)
• Insulation type: injected high-density polyurethane (43 kg/m3), CFC-free, water-blown
• Insulation thickness: 75 mm
• Structure: monocoque with AISI 304 stainless steel interior; white plastified exterior with antibacterial treatment; rounded corners and sump bottom
• Feet: 4 height-adjustable feet
• Internal lighting: full-height LED
• Cooling type: professional forced-air refrigeration
• Defrost type: automatic adaptive with condensate evaporation

Electronic controller ECT-F PLUS
Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C via a 16-character backlit alphanumeric LCD. Four membrane keys. Backup battery for power-failure alarm up to 48 hours. Min/max temperature memory and clean contact on the PCB for remote alarms. Display configurable in multiple reading modes and password protection for power on/off and set-point changes. Event log of 16 events plus absolute min/max temperatures, user-resettable.

Technical data

• Refrigerant gas: R290
• Consumption: 1 kWh/24h
• Power / Current: 0.12 kW / 0.7 A
• Start-up current: 2.5 A
• Noise level: 50 dBA
• Heat emission (EN 12900): 41 W
• Number of shelves: 1 perforated stainless sliding shelf included, load 100 kg
• Shelf dimensions: 53.5 x 58.5 cm
• Internal sockets: 2 included
• Cable pass-through: Ø 35 mm with plug included

Key specifications (summary)

• Temperature range: +2 / +15 °C
• Net capacity: 620 L (21.89 cu ft)
• Nominal capacity: 700 L (24.72 cu ft)
• External dimensions (W x D x H): 75 x 84.5 x 210 cm
• Controller type: ECT-F PLUS

Features / technical specifications

• Commercial name: CROMATOGRAFIA 700 ECT-F PLUS
• Product code (page reference): CRM0703
• Door: tempered anti-fog low-emissivity glass
• Interior: AISI 304 stainless steel
• Insulation: injected polyurethane 43 kg/m3, 75 mm thickness
• Refrigerant: R290
• Energy consumption: 1 kWh/24h
• Noise level: 50 dBA
• Temperature range: +2 / +15 °C
• Included shelf: perforated stainless (53.5 x 58.5 cm) load 100 kg
• Equipment: 2 internal sockets, Ø35 mm cable pass-through with plug
• Control: ECT-F PLUS electronic controller with backup battery for alarms
