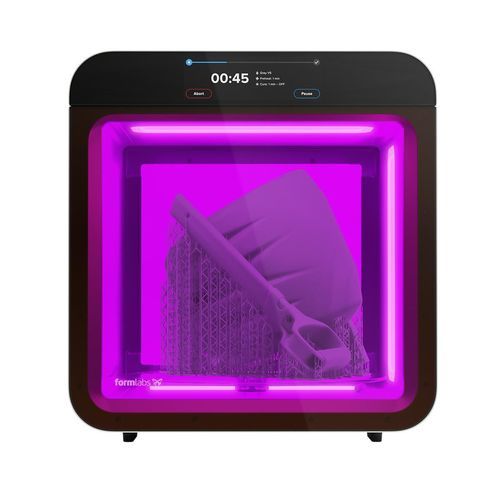

3D printing curing unit Form Cure L V2

for resinLEDUV

Overview
Form Cure L V2 precisely combines heat and 405 nm light to deliver tough, strong prints with unprecedented speed and consistency. It is a large-format post-curing solution for resin 3D printed parts that maximizes material properties and improves part performance. Post-curing completes the chemical reaction started during printing, enhancing final part strength, toughness, heat resistance and creep resistance while creating a harder, less tacky surface. For biocompatible materials, post-curing is necessary to meet regulatory safety standards.

Performance and usability
Form Cure L V2 offers much faster cure cycles and quicker heat-up times than the previous generation, with increased UV output (5× more UV power vs prior generation), faster heat-up, and a reduced footprint (26% smaller while curing up to 19% larger parts). Users can select validated presets for Formlabs materials (45+ profiles) or set custom time and temperature. Typical performance: near-instant heat-up (60 °C in ~150 s and 80 °C in ~360 s for the 230V version) and rapid post-curing — many general-purpose resins cure in as little as ~60 s for large Form 4L/BL prints.

Key capabilities

• Combines convection heating and 405 nm multi-directional LED illumination for uniform curing.
• High-power LED array (96 multi-directional LEDs) providing consistent irradiance; LED wavelength centered at 405 nm.
• 350 W LED power and 120 W LED radiant output (Form Cure L V2).
• Convection heating system reaching up to 100 °C.
• Optimized presets for Formlabs materials (45+ pre-programmed cure profiles) and support for advanced custom profiles.
• Large build-friendly rotating turntable and chamber geometry to accommodate Form 4L parts and full production batches.
• Designed for automated post-processing integration and low intervention.

Design and workflow benefits
Fast curing and quick heat-up produce consistent, validated results and accelerate end-to-end workflows for general-purpose, engineering and biocompatible resins. The unit is easy to maintain with an easy-to-clean glass turntable and a compact design that reduces footprint while increasing cured part capacity.

Tech specs (condensed)
Parameter — Form Cure L V2
Dimensions — 507 × 543 × 545 mm (20.0 × 21.4 × 21.5 in)
Weight — 40.0 kg (88.2 lb)
Turntable Diameter — 404 mm (15.9 in) rotating turntable
Maximum Part Height — 365 mm (14.4 in)
Maximum Cure Chamber Temperature — 100 °C (212 °F)
Light Source — 96 multi-directional LEDs
LED Power — 350 W
LED Radiant — 120 W
LED Wavelength — 405 nm
Power Requirements — Input (NA): 100–125 VAC, 50–60 Hz, 15 A; Input (EU): 220–240 VAC, 50–60 Hz, 8 A
Compatible Printers — Form 4, Form 4B, Form 4L, Form 4BL, Form 3, Form 3L, Form 3B, Form 3BL, Form 2

Notes on curing times
Examples (230V version): 60 °C in ~150 seconds; 80 °C in ~360 seconds. General-purpose resins can often be post-cured in ~60 seconds; engineering and biocompatible resins typically require 3–15 minutes depending on material and profile.

Characteristics / technical specifications

• Product name: Form Cure L V2
• SKU: FHL-CU-120V-02
• Model: Form Cure L V2
• Compatible printers: Form 4, Form 4B, Form 4L, Form 4BL, Form 3, Form 3L, Form 3B, Form 3BL, Form 2
• Post-processing type: Automated
• Turntable diameter: 404 mm (rotating)
• Maximum part height: 365 mm
• Cure chamber max temperature: 100 °C
• LED count: 96 multi-directional LEDs
• LED power: 350 W
• LED radiant: 120 W
• LED wavelength: 405 nm
• Input power (NA): 100–125 VAC, 50–60 Hz, 15 A
• Input power (EU): 220–240 VAC, 50–60 Hz, 8 A
• Unit dimensions: 507 × 543 × 545 mm
• Unit weight: 40.0 kg
• Pre-programmed profiles: 45+
• Key materials: Validated presets for Formlabs 45+ materials; supports custom profiles for advanced users
